Shree Haree Auto Industries

Established as a Partnership firm in the year 2016, we “Shree Haree Auto Industries” are a leading Manufacturer of a wide range of Cylinder Liner, Cylinder Sleeves, etc. Situated in Rajkot (Gujarat, India), we have constructed a wide and well functional infrastructural unit that plays an important role in the growth of our company. We offer these products at reasonable rates and deliver these within the promised time-frame. Under the headship of our mentor “Mr. Utsav Patel”, we have gained a huge clientele across the nation.

Established Since

2001

Why Us?

With our expertise and trustworthiness, we have secured a respectable position for ourselves in this domain. Different factors for which we have attained appreciation from clients spread all across the nation are:

Quality assured product range

Adept team of professionals

Ethical business policies

Client-centric approach

Large distribution network

Excellent transport & logistic facility

Our Products

Our Specializations

Precision engine components for automotive, tractor, and industrial engines.

Aftermarket Solutions for Leading Automotive Brands

Our precision-engineered components support a wide range of engines used by global vehicle manufacturers.

All trademarks and brand names belong to their respective owners and are used for reference purposes only.

Request a Quote or Sample

Submit your required dimensions and our team will review your request and respond with pricing or sample availability.

Our Specializations

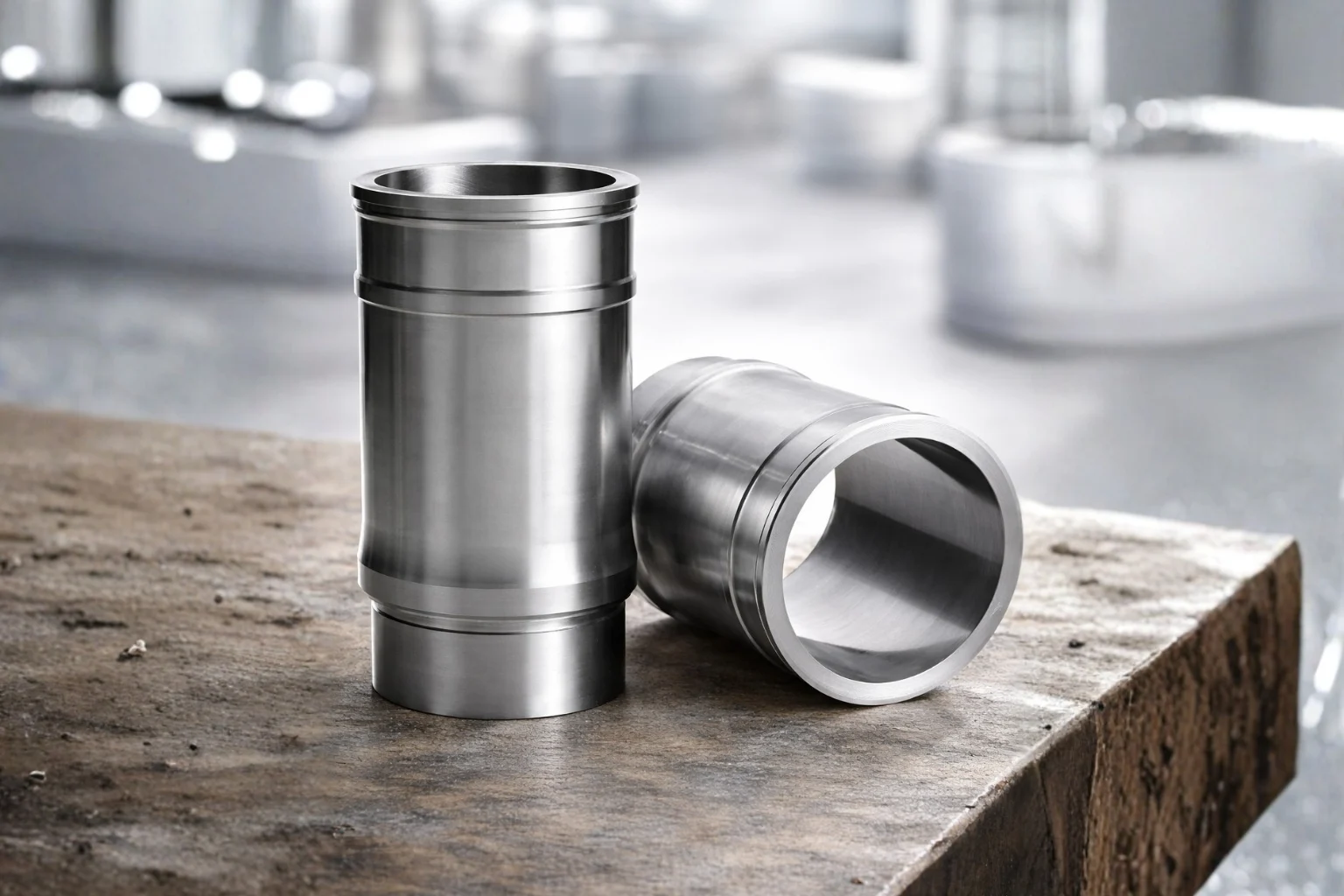

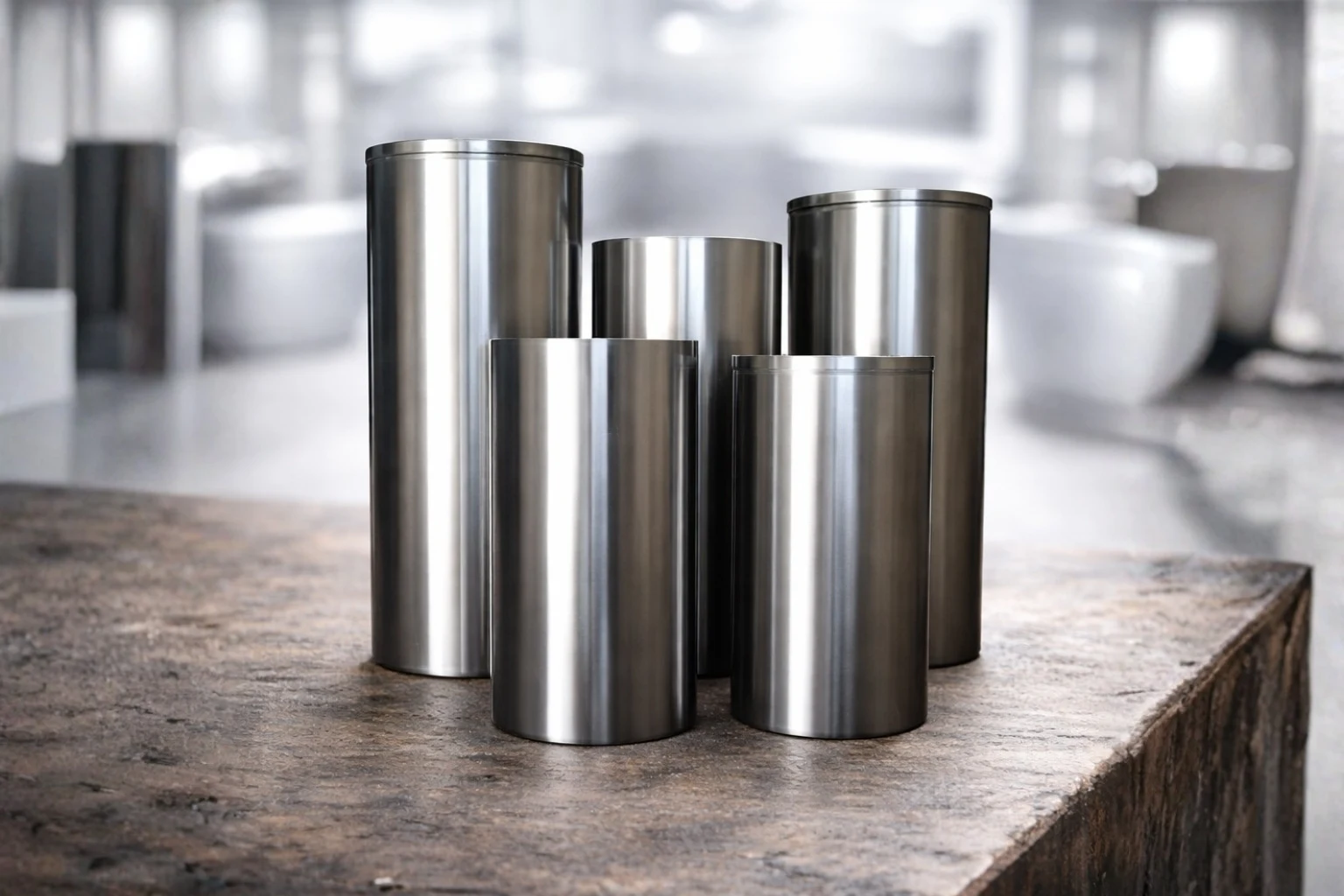

Cylinder Sleeves

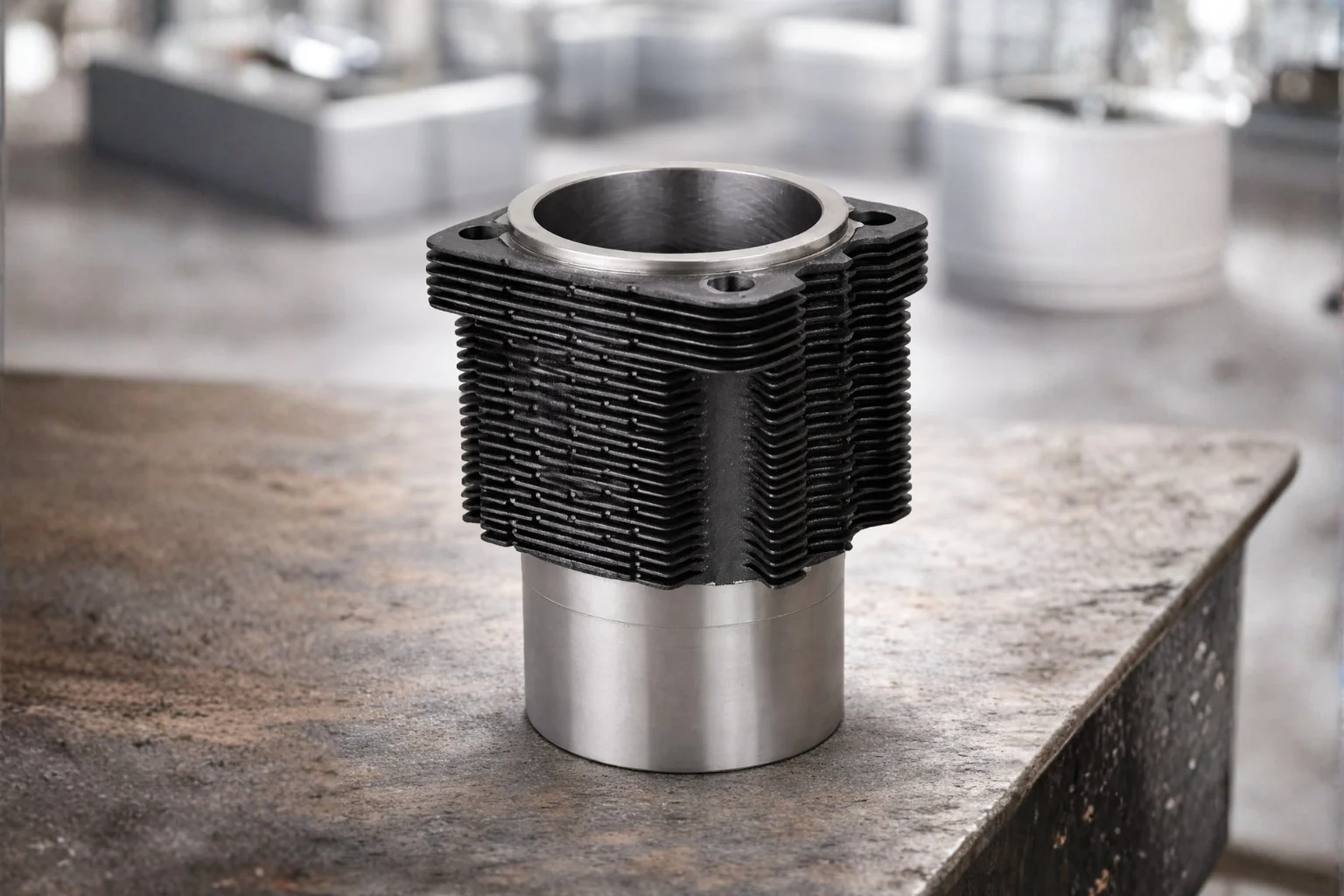

Cylinder Liner

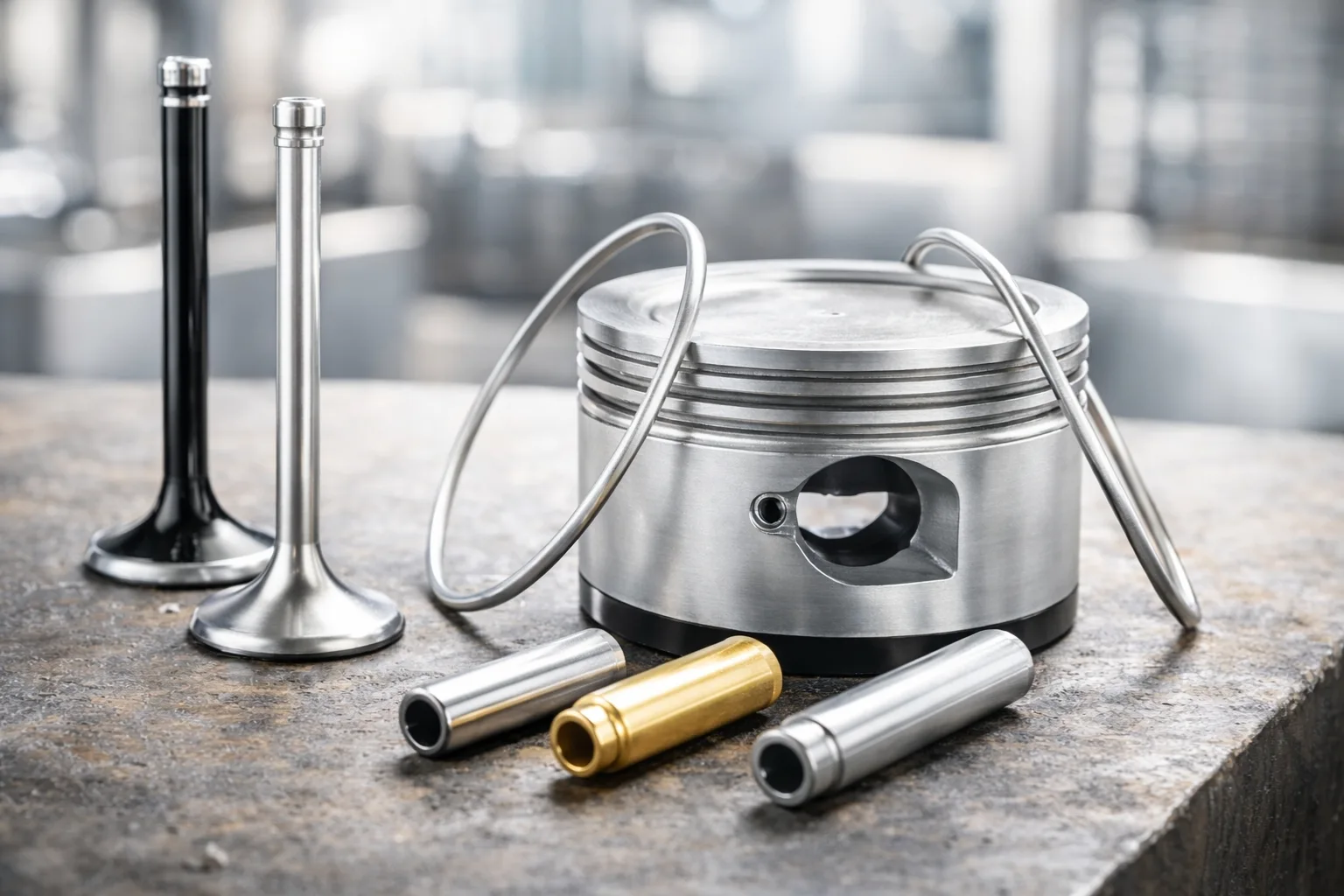

Liner Piston

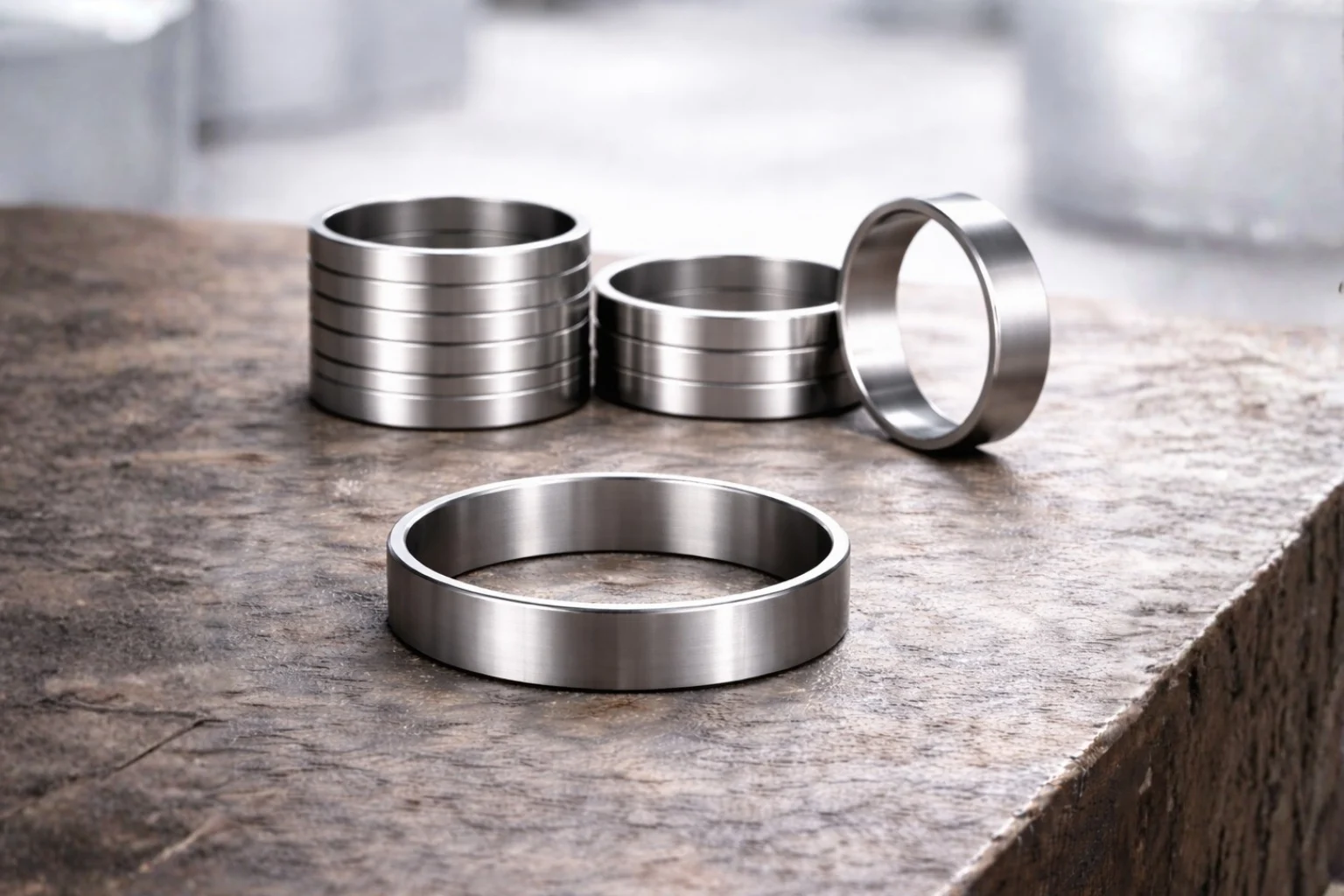

Brake Drum Sleeve

Precision Engineering Components

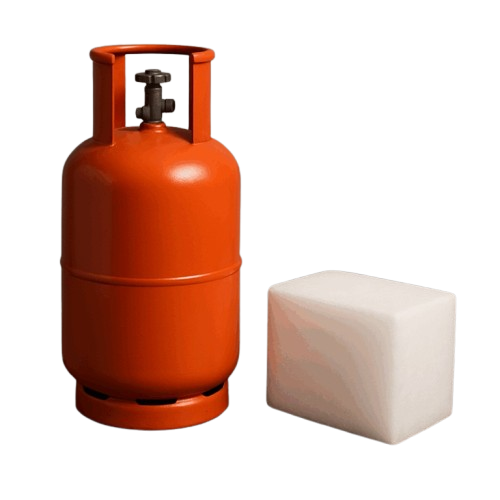

Gas Cylinder And Dry Ice Block

Get in Touch With Our Team

Have a question or need support? Our team is just one click away.

IHC

Sr No.	MAL No.	Suitable for	Used for Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 09 01	IHC	DU 11	87.312	179.4	104.00	95.25	5.81	–
2	L 78 09 02	IHC	UD 206	98.425	200.95	119.00	110.725	7.727+1.1	–
3	L 78 09 03	IHC	D 358	98.425	215.8	118.97	110.725	7.707+1.1	–
4	L 78 09 04	IHC	D 402	100.00	216.1	119.00	110.75	7.72+1.1	–
5	L 78 09 07	IHC	–	88.9	185.7	101.5	93.66	5.81	–

RVI

Sr No.	MAL No.	Suitable for	Used for Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 18 06	RVI	MIDS 06.20.30 N	120.00	261.00	147.25	135.00	9.36 + 0.74	–
2	L 78 18 07	RVI	MIDR 06.20.45.E2	120.02	261.00	147.00	135.00	9.28+0.82	–
3	L 78 18 08	RVI	MDU 25 M, M620 Z3	120.00	275.00	149.00	133.00	10.05+0.9	–
4	L 78 18 09	RVI	MIDS 06.20.30 N	120.02	261.00	147.25	135.00	9.36-0.74	–
5	L 78 18 10	RVI	–	123.023	257.00	147.3	134.915	9.35 +0.75	–
6	L 78 18 11	RVI	MIDR 06.23.56 A/41	123.035	257.00	147.3	135.00	9.35+0.75	–
7	L 78 18 12	RVI	MIDS 06.35.40D	135.03	286.00	149.00	143.25	7.3	–
8	L 78 18 13	RVI	MIDS 06.35.40 M3	135.02	287.6	149.00	143.01	7.58+1.0	–
9	L 78 18 14	RVI	MIDS 06.35.40, MIDR 06.35.40	135.02	286.00	147.00	143.00	7.0	–
10	L 78 18 15	RVI	MIDS 06.35.40D	135.02	286.00	149.00	143.00	7.3	–
11	L 78 18 22	RVI	–	123.00	249.5	148.96	138.89	11.20+0.85	–
12	L 78 18 23	RVI	635.4	135.02	287.5	149.00	143.273	7.59+1.1	–
13	L 78 18 24	RVI	MIDR 06.35.40, MS 06.35T	135.02	286.00	149.00	143.5	7.3	–
14	L 78 18 25	RVI	–	135.03	285.9	148.95	143.015	7.36	–
15	L 78 18 26	RVI	–	135.02	288.00	148.87	142.75	7.59+1.10	–
16	L 78 18 29	RVI	–	120.02	261.00	147.25	135.00	9.36+0.74	–
17	L 78 18 30	RVI	–	123.03	256.8	147.3	134.9	9.36+0.68	–
18	L 78 18 31	RVI	–	120.02	260.4	147.00	135.00	9.27+0.75	–
19	L 78 18 32	RVI	–	123.035	257.00	147.3	135.00	9.35+0.75	–
20	L 78 18 33	RVI	–	145.00	262.00	174.00	158.5	10.0+1.0	–
21	L 78 18 34	RVI	–	120.00	241.8	146.95	135.00	9.30+0.80	–
22	L 78 18 36	RVI	–	120.00	261.00	147.25	134.915	9.36+0.80	–
23	L 78 18 35	RVI	–	120.00	261.00	147.3	135.00	9.30+1.0	–
24	L 78 18 38	RVI	–	135.02	286.00	148.85	143.00	7.3	–
25	L 78 18 39	RVI	–	120.02	257.00	147.5	135.00	9.36+0.8	–
26	L 78 18 45	RVI	MIDR 06.23.56 A/41 Euro 2, MIDR 06.23.56 B/41 Euro 2	123.03	256.5	147.25	134.9	9.35 + 0.70	–
27	L 78 18 47	RVI	–	120.00	261.00	147.25	135.00	9.36+0.75	–
28	L 78 18 49	RVI	–	123.00	250.3	152.00	139.2	11.08 + 0.95	–

DAEWOO

Sr No.	MAL No.	Suitable for	Used for Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 04 49	DAEWOO	–	111.00	233.85	119.9	115.00	5.070+0.85	–

VOLVO

Sr No.	MAL No.	Suitable for	Used for Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 22 07	VOLVO	TD 61 AP, TD 63 E	98.445	237.4	119.1	110.00	9.66+3.54	20.0
2	L 78 22 08	VOLVO	7B 260	104.78	256.5	129.4	116.95	9.4+1.1	–
3	L 78 22 09	VOLVO	TD 102 F	120.65	287.5	147.00	133.85	11.52+3.48	–
4	L 78 22 10	VOLVO	TD 103 E	120.65	287.5	147.00	134.00	11.52+3.48	14.1
5	L 78 22 11	VOLVO	TD 100 G	120.65	296.4	146.95	133.85	11.55+3.48	10.0
6	L 78 22 12	VOLVO	TD 100 G	120.65	296.5	147.00	133.86	11.52+3.48	–
7	L 78 22 13	VOLVO	TD 121 G	130.175	311.00	157.6	143.9	13.52+0.76	18.0
8	L 78 22 14	VOLVO	TD 122 FH	130.175	311.00	157.6	143.4	10.52+0.7	18.0
9	L 78 22 15	VOLVO	TD 122 FH	130.175	313.00	157.6	144.00	10.52+3.28	18.0
10	L 78 22 16	VOLVO	TD 123 ES	130.175	313.00	157.6	143.9	10.52+3.28	–
11	L 78 22 17	VOLVO	D12, D 420/5	131.00	272.8	159.6	144.00	11.2+0.9	–
12	L 78 22 18	VOLVO	D12A 420	131.00	276.37	159.6	144.00	11.2+4.48	–
13	L 78 22 19	VOLVO	TD 162 F	144.00	315.00	171.94	158.95	13.095+2.0	15.0
14	L 78 22 20	VOLVO	TD 163 ES	144.00	315.00	171.94	158.95	13.095+2.0	–
15	L 78 22 21	VOLVO	DXi 13 500, DXi 13 460, D13A 480, D13B 440	131.00	262.00	159.6	143.9	11.2+0.9	–
16	L 78 22 22	VOLVO	D7C 215, D7C 290, TAD 740 GE, D7C 310	107.00	256.8	129.4	116.95	9.4+0.95	–
17	L 78 22 23	VOLVO	TD 70 F	104.775	257.00	127.00	117.00	11.66 + 0.74	18.6
18	L 78 22 25	VOLVO	TD 42, TD 45B	105.57	245.00	127.5	117.97	14.1+0.66	–
19	L 78 22 26	VOLVO	–	120.65	296.25	147.00	134.00	11.52	12.0
20	L 78 22 27	VOLVO	–	131.00	272.8	159.6	144.00	11.2+1.25	–
21	L 78 22 28	VOLVO	–	120.64	287.5	147.00	134.00	11.52	–
22	L 78 22 29	VOLVO	TD 122 FH	130.165	311.00	157.6	144.00	10.52	18
23	L 78 22 30	VOLVO	–	98.43	234.5	119.1	110.00	9.41+0.95	–
24	L 78 22 31	VOLVO	–	131.00	261.7	159.55	143.85	11.20+1.20	–
25	L 78 22 32	VOLVO	–	120.64	287.5	147.00	134.00	11.52+3.48	–
26	L 78 22 33	VOLVO	–	131.00	272.8	159.55	143.92	11.20+1.18	–
27	L 78 22 34	VOLVO	–	131.00	276.37	159.6	144.00	11.20+4.64	–
28	L 78 22 36	VOLVO	–	120.64	287.5	147.00	134.00	11.52+3.48	–
29	L 78 22 37	VOLVO	–	131.00	261.7	159.55	143.85	11.20+1.20	–
30	L 78 22 38	VOLVO	–	120.65	296.5	147.01	133.86	11.52+3.5	–
31	L 78 22 39	VOLVO	TD 60 A, TD 60 B, TD 60 C	98.435	234.5	119.1	110.00	11.36+0.990	–
32	L 78 22 40	VOLVO	–	130.175	311.00	157.6	143.895	10.52+0.7	18
33	L 78 22 42	VOLVO	–	95.25	234.5	117.1	108.00	11.61+0.73	16.0
34	L 78 22 41	VOLVO	–	131.00	272.8	159.6	144.00	11.2+0.9	–
35	L 78 22 43	VOLVO	–	104.767	256.8	129.4	117.00	9.40+0.95	–
36	L 78 22 47	VOLVO	–	131.00	272.8	159.6	144.00	11.20+0.9	–
37	L 78 22 48	VOLVO	–	131.00	272.8	159.6	144.00	11.20+0.9	–
38	L 78 22 50	VOLVO	–	130.18	313.00	157.6	143.9	10.52+3.28	–
39	L 78 22 51	VOLVO	–	120.64	287.5	147.00	134.00	11.52+3.45	–
40	L 78 22 52	VOLVO	–	108.00	228.00	131.7	120.00	8.06	–
41	L 78 22 53	VOLVO	–	120.00	250.00	149.00	138.9	11.19+0.85	–
42	L 78 22 54	VOLVO	–	120.65	294.00	147.00	134.00	11.77+0.8	25.5
43	L 78 22 55	VOLVO	–	120.64	296.5	147.00	134.00	11.52+3.48	–
44	L 78 22 56	VOLVO	–	98.42	237.1	119.1	109.92	9.645+3.6	21.0
45	L 78 22 57	VOLVO	–	98.43	234.5	119.1	110.00	11.60+0.75	15.0
46	L 78 22 58	VOLVO	–	130.165	310.75	157.574	143.848	13.505+0.80	18.0
47	L 78 22 59	VOLVO	–	98.43	237.4	119.1	110.00	9.66+3.60	10.3
48	L 78 22 61	VOLVO	TD 73	104.775	259.7	127.00	117.00	9.66+3.59	18.1
49	L 78 22 64	VOLVO	–	105.57	245.00	127.35	117.97	14.10+0.70	–
50	L 78 22 60	VOLVO	–	130.17	313.00	157.55	144.00	10.52+3.28	18.0
51	L 78 22 62	VOLVO	Dxi 13 500, Dxi 13 460, D13A 480, D13B 440	131.00	262.00	159.6	143.9	11.2+0.9	–
52	L 78 22 67	VOLVO	–	104.767	259.7	129.4	117.00	9.66+3.59	–
53	L 78 22 66	VOLVO	–	98.43	237.4	119.05	109.96	9.64+3.60	9.0
54	L 78 22 68	VOLVO	–	98.00	193.00	105.00	101.00	4.5	–
55	L 78 22 70	VOLVO	–	111.125	258.5	131.7	125.97	14.10+0.70	–
56	L 78 22 65	VOLVO	D12A	131.00	272.8	159.6	144.00	11.20+0.87	–
57	L 78 22 73	VOLVO	–	105.57	245.00	127.48	117.94	14.09+0.65	–
58	L 78 22 74	VOLVO	–	95.25	234.5	117.06	107.95	11.63+0.73	–
59	L 78 22 75	VOLVO	–	131.00	272.8	159.55	144.00	11.2+0.9	–
60	L 78 22 76	VOLVO	–	144.00	288.15	177.00	165.9	13.2+0.40	–
61	L 78 22 77	VOLVO	–	144.00	288.2	177.00	165.9	13.2+6.5	–
62	L 78 22 78	VOLVO	–	123.00	249.8	148.96	138.9	11.18+1.0	–
63	L 78 22 79	VOLVO	–	104.767	259.7	129.4	117.00	9.66 +3.59	–
64	L 78 22 80	VOLVO	–	98.43	234.5	119.1	110.00	11.61 + 0.74	–
65	L 78 22 81	VOLVO	–	98.43	237.15	119.1	109.928	9.66 +3.59	–
66	L 78 22 82	VOLVO	–	98.43	237.15	119.1	110.00	9.66 +3.59	–
67	L 78 22 83	VOLVO	–	104.77	259.7	127.00	117.00	9.70 +3.55	–

TOYOTA

Sr No.	MAL No.	Suitable for	Used for Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 20 06	TOYOTA	–	95.3	190.00	107.65	100.00	2.50+1.0	–
2	L 78 20 07	TOYOTA	5Ltr.	98.5	190.99	–	103.5	–	–
3	L 78 20 08	TOYOTA	3Ltr.	95.00	190.96	–	100.00	–	–

SCANIA

Sr No.	MAL No.	Suitable for	Used for Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 19 01	SCANIA	DS 9.12	115.00	257.3	140.7	127.95	8.3+0.8	10.0
2	L 78 19 02	SCANIA	–	115.00	257.5	140.76	128.00	8.3+0.8	–
3	L 78 19 03	SCANIA	DS 9.01	115.00	265.5	140.76	128.00	10.3+0.8	19.0
4	L 78 19 04	SCANIA	DS 8.05	115.00	269.00	137.3	130.00	8.2+0.85	18.9
5	L 78 19 05	SCANIA	–	127.00	291.1	153.8	139.957	7.90 +0.85	12.5
6	L 78 19 06	SCANIA	DC 11.07	127.00	271.00	149.95	138.97	194.03+0.8	7.2
7	L 78 19 07	SCANIA	DSC 14.08	127.00	275.5	155.7	140.00	10.05 + 0.4	11.7
8	L 78 19 08	SCANIA	DS 14.06	127.00	276.00	155.8	139.957	10.08+0.4	22.0
9	L 78 19 09	SCANIA	–	127.00	290.3	153.85	139.957	8.04+0.70	–
10	L 78 19 10	SCANIA	DSC 11.23	127.00	291.00	153.85	140.00	7.92+0.8	12.5
11	L 78 19 11	SCANIA	DS 11	127.00	291.00	153.8	140.00	7.9+0.8	11.0
12	L 78 19 12	SCANIA	DS 11.14	127.00	291.1	153.8	140.00	7.92+0.8	20.5
13	L 78 19 13	SCANIA	DN 11.01, DS 11	127.00	291.1	153.85	139.957	8.18+0.9	21.5
14	L 78 19 14	SCANIA	–	130.00	270.5	150.825	140.00	194.05 +0.4	8.0
15	L 78 19 15	SCANIA	D 2066 LUH 05	127.00	270.5	151.00	140.00	194.05 + 1.05	6.4
16	L 78 19 17	SCANIA	DC 12.24, DT 12.06	127.00	271.1	151.00	140.00	194.05+1.05	8.0
17	L 78 19 19	SCANIA	–	127.00	291.1	153.8	139.957	7.90+0.85	21.9
18	L 78 19 18	SCANIA	–	127.00	270.6	152.95	139.95	194.05 +1.0	8.0
19	L 78 19 21	SCANIA	–	130.00	271.1	151.00	140.00	194.27	8.8
20	L 78 19 22	SCANIA	DS 11.14	127.00	291.1	153.8	139.932	7.92+0.8	20.5
21	L 78 19 23	SCANIA	–	127.00	271.45	149.96	138.95	194.27	10.25
22	L 78 19 24	SCANIA	–	127.00	271.5	155.7	139.957	10.05	11.5
23	L 78 19 25	SCANIA	–	127.00	271.1	151.00	140.00	194.27	–
24	L 78 19 26	SCANIA	–	127.00	291.00	153.85	139.957	7.9	20.5
25	L 78 19 27	SCANIA	–	127.00	271.00	150.00	138.96	10.8+1.0	8.2
26	L 78 19 29	SCANIA	–	115.00	265.5	140.76	127.7	10.3+0.8	19.0
27	L 78 19 30	SCANIA	–	115.00	257.5	140.72	128.00	8.26+0.8	10.5
28	L 78 19 31	SCANIA	–	127.00	275.85	155.8	139.94	10.03+0.40	20.0
29	L 78 19 36	SCANIA	DS 8.06	115.00	271.00	137.3	130.00	8.0+0.85	18.7
30	L 78 19 40	SCANIA	–	127.00	291.00	153.8	140.00	8.0+0.8	21.0
31	L 78 19 34	SCANIA	–	127.00	275.5	155.74	139.94	10.07	8.6
32	L 78 19 35	SCANIA	–	127.00	291.00	153.86	140.00	7.92+0.80	12.5
33	L 78 19 38	SCANIA	–	127.00	275.5	155.73	139.9	10.07+0.38	8.7
34	L 78 19 39	SCANIA	–	127.00	291.00	153.8	140.00	7.92+0.8	11.7
35	L 78 19 41	SCANIA	–	127.00	275.5	155.7	140.00	10.05+0.40	11.7
36	L 78 19 42	SCANIA	–	127.00	291.1	153.86	140.00	7.92+0.8	11.0
37	L 78 19 43	SCANIA	–	127.00	271.00	150.00	139.00	194.250+0.85	8.25
38	L 78 19 45	SCANIA	–	130.00	271.1	150.85	140.00	194.250+0.85	–
39	L 78 19 46	SCANIA	–	127.00	275.5	155.875	139.945	10.07+0.40	21.0
40	L 78 19 47	SCANIA	–	115.00	257.5	140.7	127.945	8.25+1.0	10.2
41	L 78 19 48	SCANIA	–	115.00	265.6	140.74	127.925	10.245+0.855	19.0
42	L 78 19 49	SCANIA	–	115.00	270.5	137.3	130.00	8.20+0.80	19.0
43	L 78 19 50	SCANIA	–	127.00	291.00	153.86	140.00	7.920+0.80	12.5
44	L 78 19 51	SCANIA	–	127.00	271.1	151.00	140.00	197.27+0.85	8.25
45	L 78 19 52	SCANIA	–	115.00	257.5	140.76	128.00	8.30+0.80	10.5
46	L 78 19 53	SCANIA	–	127.00	271.1	151.00	140.00	194.27+0.8	–
47	L 78 19 54	SCANIA	–	127.00	271.1	151.00	140.00	194.27+0.8	8.25
48	L 78 19 55	SCANIA	–	127.00	271.1	151.00	140.00	194.27+0.8	–
49	L 78 19 56	SCANIA	–	130.00	271.1	151.00	140.00	194.27+0.85	–
50	L 78 19 57	SCANIA	–	130.00	270.5	151.00	140.00	194.27+0.85	8.0
51	L 78 19 59	SCANIA	–	127.00	271.1	150.00	139.00	194.25+0.85	–
52	L 78 19 60	SCANIA	–	130.00	270.57	151.00	140.00	194.27+0.20	8.0
53	L 78 19 63	SCANIA	–	130.00	270.6	151.00	140.00	194.27	–
54	L 78 19 66	SCANIA	–	127.00	276.00	156.00	140.00	10.1+0.4	21.5
55	L 78 19 67	SCANIA	–	127.00	276.00	156.00	140.00	10.05+0.4	11.15
56	L 78 19 68	SCANIA	–	130.00	270.5	151.00	140.00	194.27+0.85	8.0
57	L 78 19 70	SCANIA	–	130.00	269.97	152.00	140.00	194.27 +0.20	8.0
58	L 78 19 71	SCANIA	–	127.00	275.5	155.74	139.94	10.040 +0.4	8.5

RENAULT

Sr No.	MAL No.	Suitable for	Used for Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 18 01	RENAULT	810.03	73.00	134.00	87.76	78.5	94.85	–
2	L 78 18 02	RENAULT	C3J 702	76.00	134.00	90.2	80.55	95.00	–
3	L 78 18 03	RENAULT	–	77.00	134.00	90.3	81.00	95.0	–
4	L 78 18 04	RENAULT	720.05/08/12	102.00	220.7	120.7	114.00	8.0+0.70	–
5	L 78 18 05	RENAULT	MID 06.20.30 C	120.00	241.00	147.00	135.00	9.28+0.82	–
6	L 78 18 16	RENAULT	MIDR 06.20.45 E2	120.00	257.00	147.5	135.00	9.35+0.75	–
7	L 78 18 18	RENAULT	K9K 700, K9K 704, K9K 706, K9K 710, K9K 728	75.3	142.00	81.00	79.15	5.2	–
8	L 78 18 17	RENAULT	–	145.00	270.75	177.6	159.93	10.043	–
9	L 78 18 19	RENAULT	712.01, 712.02, 712.03, 712.04	98.00	220.5	118.9	111.95	8.0+0.8	–
10	L 78 18 20	RENAULT	RENAULT-797, 798, 712.11, M1DR 06.02.12	102.00	235.3	121.00	113.958	8.0+0.8	–
11	L 78 18 21	RENAULT	MIDR 06.02.26 DU	102.00	218.00	122.38	113.97	8.0+0.8	–
12	L 78 18 27	RENAULT	–	102.00	220.5	120.6	133.988	8.0+0.8	–
13	L 78 18 28	RENAULT	–	123.00	257.00	147.5	135.00	9.35	–
14	L 78 18 41	RENAULT	–	102.00	234.3	122.4	114.00	8.00+0.8	–
15	L 78 18 40	RENAULT	–	102.00	218.00	122.5	114.00	8.00+0.8	–
16	L 78 18 42	RENAULT	–	102.00	218.00	122.4	114.00	8.00+0.8	–
17	L 78 18 43	RENAULT	–	75.3	142.00	81.00	79.1	5.0	–
18	L 78 18 44	RENAULT	–	102.00	235.5	121.00	109.1	8+0.8	–
19	L 78 18 46	RENAULT	–	98.00	220.7	120.9	108.00	8.00 + 0.70	–
20	L 78 18 48	RENAULT	–	78.6	135.0	–	83.00	–	–

PEUGEOT

Sr No.	MAL No.	Suitable for	Used for Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 16 14	PEUGEOT	DFZ (XU9J1), LFX (XU7JB), B1E (XU51C), B1A (XU51C/K), 171A,171B,171C	83.00	141.00	97.00	88.56	95.19	–
2	L 78 16 15	PEUGEOT	XDP 6.88, TMD 4.88, PEUGEOT 504	88.00	173.1	106.3	96.00	7.05	–
3	L 78 16 16	PEUGEOT	XDP 6.90	90.00	173.3	106.3	96.00	7.05	–
4	L 78 16 23	PEUGEOT	107 (XN2)/170 B	88.00	135.6	101.9	93.00	90.00	–
5	L 78 16 24	PEUGEOT	–	83.00	141.00	97.00	88.54	95.14	–
6	L 78 16 31	PEUGEOT	–	93.00	166.00	99.44	97.07	3.9	–
7	L 78 16 45	PEUGEOT	–	75.00	133.8	89.2	79.45	90.0	–
8	L 78 16 57	PEUGEOT	–	75.00	135.00	89.2	79.42	90.00	–
9	L 78 16 77	PEUGEOT	–	77.7	140.00	83.5	82.00	4.8	–
10	L 78 16 79	PEUGEOT	–	84.25	150.00	–	88.00	–	–

PERKINS

Sr No.	Part Number	Suitable For	Used For Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 16 01	PERKINS	4.192, 60288, P4, P6	88.925	215.9	94.4	93.72	4.76	–
2	L 78 16 02	PERKINS	3.152, 4.203, 4.2032	91.49	216.00	96.7	93.72	3.81	–
3	L 78 16 03	PERKINS	–	90.6	216.00	96.7	93.74	3.76	–
4	L 78 16 04	PERKINS	–	90.6	216.00	96.66	94.31	6.1	–
5	L 78 16 05	PERKINS	–	90.6	216.00	98.16	95.31	5.07	–
6	L 78 16 06	PERKINS	T – 4.38	97.7	227.2	106.3	103.22	3.81+1.0	–
7	L 78 16 07	PERKINS	1004.4/1106.66	100.02	227.5	107.42	104.2	3.85+1.0	–
8	L 78 16 08	PERKINS	–	97.74	227.4	106.4	103.2	3.85 +0.81	–
9	L 78 16 09	PERKINS	AD 4.236, T 4.38	97.87	228.8	–	103.2	–	–
10	L 78 16 10	PERKINS	1106C-E60TA, T4.40	100.03	226.44	107.4	104.2	3.84	–
11	L 78 16 11	PERKINS	–	99.00	226.5	107.3	104.21	3.85	–
12	L 78 16 12	PERKINS	–	99.25	226.5	107.35	104.3	3.85+1.0	–
13	L 78 16 13	PERKINS	–	101.00	227.5	107.4	104.25	3.85+0.80	–
14	L 78 16 17	PERKINS	–	90.00	216.00	97.66	94.81	5.07	–
15	L 78 16 18	PERKINS	–	101.05	227.3	107.45	104.33	3.90+0.80	–
16	L 78 16 19	PERKINS	–	100.1	227.3	107.45	104.3	3.80+0.80	–
17	L 78 16 20	PERKINS	–	104.2	227.00	109.4	108.02	5.1	–
18	L 78 16 21	PERKINS	IM 36 V/A	90.6	215.9	96.65	93.73	3.81	–
19	L 78 16 22	PERKINS	–	103.26	226.5	112.81	108.28	2.54+0.81	–
20	L 78 16 25	PERKINS	T – 4.40	100.00	226.6	107.44	104.28	3.86	–
21	L 78 16 26	PERKINS	1106C-E60TA/T4.40	99.28	226.4	107.4	104.29	4.0	–
22	L 78 16 27	PERKINS	–	100.00	227.5	107.4	104.28	3.8	–
23	L 78 16 28	PERKINS	–	100.00	227.25	107.4	104.26	3.8+0.8	–
24	L 78 16 29	PERKINS	–	90.6	216.00	98.66	95.81	5.07	–
25	L 78 16 30	PERKINS	–	98.48	227.28	106.3	103.27	3.81	–
26	L 78 16 32	PERKINS	–	90.6	216.00	97.18	94.24	4.85	–
27	L 78 16 35	PERKINS	–	98.47	226.44	107.37	104.2	3.81	–
28	L 78 16 36	PERKINS	–	100.00	227.4	107.442	104.28	3.86+0.85	–
29	L 78 16 37	PERKINS	–	98.48	226.44	107.36	104.2	3.81	–
30	L 78 16 38	PERKINS	–	100.00	226.6	107.442	104.28	3.861	–
31	L 78 16 39	PERKINS	–	101.05	226.9	107.4	104.2	3.85+0.90	–
32	L 78 16 40	PERKINS	–	91.48	216.00	96.7	93.67	3.76	–
33	L 78 16 41	PERKINS	–	103.89	227.00	109.49	108.00	4.94	–
34	L 78 16 42	PERKINS	–	99.2	226.5	107.91	104.78	4.9	–
35	L 78 16 43	PERKINS	–	92.2	182.8	102.96	96.6	6.04	–
36	L 78 16 44	PERKINS	–	97.7	227.3	106.87	103.77	3.90+0.8	–
37	L 78 16 46	PERKINS	–	90.49	216.00	96.6	94.00	4.7	–
38	L 78 16 47	PERKINS	–	90.49	216.00	96.6	94.5	4.7	–
39	L 78 16 48	PERKINS	–	101.1	226.5	107.4	104.2	3.84	–
40	L 78 16 49	PERKINS	–	97.587	226.441	107.407	104.267	3.8	–
41	L 78 16 50	PERKINS	–	90.6	215.9	96.57	93.75	3.8	–
42	L 78 16 51	PERKINS	–	97.587	227.28	106.5	103.27	3.8	–
43	L 78 16 52	PERKINS	–	100.152	227.33	107.366	104.2	3.8	–
44	L 78 16 53	PERKINS	–	90.55	215.77	–	93.8	–	–
45	L 78 16 54	PERKINS	–	98.5	227.28	106.5	103.25	3.8 + 0.90	–
46	L 78 16 55	PERKINS	–	101.092	227.33	107.366	104.2	3.8 + 0.500	–
47	L 78 16 56	PERKINS	–	98.501	226.441	107.404	104.2	3.8	–
48	L 78 16 66	PERKINS	–	104.00	227.00	109.5	108.07	4.62	–
49	L 78 16 60	PERKINS	–	100.2	226.5	107.4	104.28	3.8	–
50	L 78 16 61	PERKINS	–	97.74	227.3	106.36	103.26	3.810+0.810	–
51	L 78 16 62	PERKINS	–	100.2	227.25	107.4	104.28	3.800+0.80	–
52	L 78 16 63	PERKINS	–	100.3	223.6	–	103.28	–	–
53	L 78 16 64	PERKINS	–	97.75	228.75	–	103.3	–	–
54	L 78 16 65	PERKINS	–	116.586	241.00	134.92	127.775	8.960+1.280	–
55	L 78 16 58	PERKINS	EM-365	100.00	226.5	107.42	104.25	3.81	SEMI FINISH
56	L 78 16 67	PERKINS	–	104.00	227.25	109.51	108.05	4.96	–
57	L 78 16 68	PERKINS	–	116.586	239.5	134.86	127.76	8.943 + 1.2	–
58	L 78 16 69	PERKINS	–	116.586	239.5	134.86	127.76	8.943 + 1.27	–
59	L 78 16 70	PERKINS	–	98.5	227.28	106.43	103.21	3.86 + 0.84	–
60	L 78 16 71	PERKINS	–	83.3	169.5	88.03	87.07	5.45	–
61	L 78 16 72	PERKINS	–	102.2	228.00	110.00	107.07	4.08	–
62	L 78 16 73	PERKINS	–	105.00	226.3	109.5	108.05	5.1	–
63	L 78 16 74	PERKINS	–	114.3	230.6	121.00	117.93	2.7	–
64	L 78 16 75	PERKINS	–	113.4	231.00	121.00	117.99	2.75 + 0.650	–
65	L 78 16 76	PERKINS	–	112.00	222.25	128.95	120.1	130+1.1	–
66	L 78 16 78	PERKINS	–	83.00	170.00	88.00	87.00	5.0	–
67	L 78 16 80	PERKINS	–	104.2	227.00	109.9	108.52	5.1	–
68	L 78 16 81	PERKINS	–	104.2	227.00	101.4	109.02	5.1	–

MWM

Sr No.	Part Number	Suitable For	Used For Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 13 51	MWM	4.07 TCA	92.00	183.00	102.45	96.09	6.04+1.1	–
2	L 78 13 52	MWM	–	100.00	212.00	117.00	110.916	8.03+0.5	–
3	L 78 13 53	MWM	–	102.00	212.5	119.00	112.914	8.04+1.05	–
4	L 78 13 54	MWM	–	102.00	212.5	119.05	112.914	8.06+0.95	–
5	L 78 13 55	MWM	–	103.00	212.5	123.5	113.95	8.04+1.05	–
6	L 78 13 56	MWM	–	105.00	206.00	124.00	113.9	8.06+1.0	–
7	L 78 13 57	MWM	–	105.00	208.00	124.00	113.9	8.06+1.0	–
8	L 78 13 58	MWM	TD 226-B	105.00	213.00	123.00	115.00	8.05+1.0	–
9	L 78 13 59	MWM	D 226-4	104.00	214.00	111.8	108.00	6.0	–
10	L 78 13 60	MWM	D 226-2, TD 226	105.00	214.00	111.8	108.00	6.0	–
11	L 78 13 61	MWM	D-226-4	105.00	214.00	112.3	108.5	6.0	–
12	L 78 13 63	MWM	TD-232 A	120.00	265.00	146.00	136.9	8.2+1.1	–
13	L 78 13 64	MWM	TBD 234	128.00	265.2	156.00	144.00	8.0+1.3	–
14	L 78 13 93	MWM	–	120.00	265.00	146.00	137.00	9.6	–
15	L 78 13 95	MWM	–	105.00	206.5	125.00	113.9	8.045	–
16	L 78 13 99	MWM	–	105.00	213.00	123.00	115.00	8.2+1	–
17	L 78 13 140	MWM	–	120.00	265.00	146.00	137.00	8.2+1.1	–

NISSAN

Sr No.	Part Number	Suitable For	Used For Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 14 03	NISSAN	–	95.3	160.00	104.95	99.00	5.08	–
2	L 78 14 04	NISSAN	–	95.3	165.00	103.95	100.00	5.0	–
3	L 78 14 05	NISSAN	–	107.3	197.00	115.95	111.00	8.0+1.0	–
4	L 78 14 06	NISSAN	–	82.3	176.00	92.95	87.00	5.08	–

MITSUBISHI

Sr No.	Part Number	Suitable For	Used For Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 13 23	MITSUBISHI	–	130.00	261.8	155.5	147.00	11.53+1.75	–
2	L 78 13 75	MITSUBISHI	6D 14T	110.01	206.00	130.47	121.92	10.0 +1.5	–
3	L 78 13 76	MITSUBISHI	6D 15	113.00	206.1	132.85	124.97	10.033 + 1.1	–
4	L 78 13 127	MITSUBISHI	–	103.00	197.4	108.9	108.07	5.15	–
5	L 78 13 163	MITSUBISHI	–	113.00	206.00	124.95	116.99	8.00+1.20	–
6	L 78 13 169	MITSUBISHI	–	90.00	164.45	–	94.2	–	–
7	L 78 13 170	MITSUBISHI	–	102.85	197.4	–	108.00	–	–
8	L 78 13 171	MITSUBISHI	–	135.00	259.7	162.5	153.96	11.820+1.670	–
9	L 78 13 172	MITSUBISHI	–	93.00	185.5	–	98.00	–	–
10	L 78 13 173	MITSUBISHI	–	102.85	192.00	–	107.00	–	–
11	L 78 13 174	MITSUBISHI	–	99.00	191.5	–	104.00	–	–
12	L 78 13 175	MITSUBISHI	–	118.00	206.00	128.00	122.00	8.050+0.90	–
13	L 78 13 195	MITSUBISHI	–	90.00	167.00	–	94.2	–	–
14	L 78 13 196	MITSUBISHI	–	106.9	197.5	–	111.4	–	–
15	L 78 13 203	MITSUBISHI	MITSUBISHI 4M41 3.2 L 16 V – L200 – PAJERO	97.8	170.00	–	101.5	–	–

MERCEDES-BENZ

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 13 12	MERCEDES-BENZ	OM 401.919	125.00	253.00	152.00	140.00	10.07+1.0	–
2	L 78 13 24	MERCEDES-BENZ	OM 603, OM 602, OM 606, OM 605, OM 601	86.00	148.6	92.55	90.00	4.7	–
3	L 78 13 25	MERCEDES-BENZ	OM 602	87.00	148.6	94.05	91.5	4.7	–
4	L 78 13 26	MERCEDES-BENZ	OM 602	88.00	156.5	94.05	91.5	4.7	–
5	L 78 13 27	MERCEDES-BENZ	OM 616	90.00	158.4	96.00	94.00	4.7	–
6	L 78 13 28	MERCEDES-BENZ	OM 352, OM 353	96.00	222.00	103.5	100.4	5.2	–
7	L 78 13 29	MERCEDES-BENZ	–	97.01	222.00	104.00	101.00	5.2	–
8	L 78 13 30	MERCEDES-BENZ	–	96.00	222.00	104.00	100.9	5.45	–
9	L 78 13 31	MERCEDES-BENZ	–	96.00	222.00	104.25	101.15	5.7	–
10	L 78 13 32	MERCEDES-BENZ	–	96.00	222.00	104.5	101.4	5.95	–
11	L 78 13 33	MERCEDES-BENZ	–	96.00	222.00	105.00	101.9	6.25	–
12	L 78 13 34	MERCEDES-BENZ	OM-352/314/353/366	95.8	222.00	106.00	103.00	5.2	–
13	L 78 13 35	MERCEDES-BENZ	OM 314, OM 352, OM 356, OM 364, OM 366/A/LA	95.8	222.00	104.00	101.00	5.2	–
14	L 78 13 36	MERCEDES-BENZ	OM 906	100.5	220.00	109.5	106.00	6.2	–
15	L 78 13 37	MERCEDES-BENZ	–	105.05	220.00	–	110.00	–	–
16	L 78 13 38	MERCEDES-BENZ	OM 401.984	125.00	253.00	153.8	144.5	9.92+1.0	–
17	L 78 13 39	MERCEDES-BENZ	OM 441, OM 445	128.00	253.00	153.8	144.5	9.92+1.0	–
18	L 78 13 40	MERCEDES-BENZ	OM 422	128.00	253.00	153.8	144.5	10.07+1	–
19	L 78 13 41	MERCEDES-BENZ	OM 457	128.00	266.00	155.5	144.5	10.13+1.1	–
20	L 78 13 42	MERCEDES-BENZ	OM 447	128.00	270.00	153.8	144.5	9.92+1.0	–
21	L 78 13 43	MERCEDES-BENZ	OM 447, OM 427	128.00	270.00	153.8	144.5	10.42+1.0	–
22	L 78 13 44	MERCEDES-BENZ	OM 345, OM 355LA	127.6	287.5	137.5	133.5	5.5	–
23	L 78 13 45	MERCEDES-BENZ	OM 355 /T2 /L	127.6	287.5	138.00	134.00	5.5	–
24	L 78 13 46	MERCEDES-BENZ	–	127.2	287.4	138.16	134.31	6.9	–
25	L 78 13 47	MERCEDES-BENZ	OM 441/2/3/4	130.00	253.00	153.8	144.5	9.92+1.0	–
26	L 78 13 48	MERCEDES-BENZ	OM 541	130.00	258.00	164.1	150.00	10.12+1.1	–
27	L 78 13 49	MERCEDES-BENZ	OM 541	130.00	258.00	164.1	150.00	10.12+1.1	–
28	L 78 13 50	MERCEDES-BENZ	OM 541, OM 542	130.00	258.00	164.2	150.00	10.12+1.1	13.5
29	L 78 13 66	MERCEDES-BENZ	–	128.00	270.00	155.1	144.5	10.13+1.0	–
30	L 78 13 69	MERCEDES-BENZ	OM 457	128.00	266.00	155.5	144.5	10.13+1.0	–
31	L 78 13 70	MERCEDES-BENZ	–	97.01	222.00	103.4	100.4	5.2	–
32	L 78 13 73	MERCEDES-BENZ	OM 501, OM 541.922, OM 521.940, OM 942.980, OM 941	130.00	258.00	164.1	150.00	10.12+1.1	–
33	L 78 13 74	MERCEDES-BENZ	OM 501, OM 542.941, OM 942.990, OM 941.923	130.00	258.00	164.1	150.00	10.12+1.1	–
34	L 78 13 88	MERCEDES-BENZ	–	128.00	287.5	137.5	133.5	5.5	–
35	L 78 13 89	MERCEDES-BENZ	–	128.00	287.5	137.5	134.00	5.5	–
36	L 78 13 79	MERCEDES-BENZ	–	96.5	222.00	103.4	100.4	5.2	–
37	L 78 13 80	MERCEDES-BENZ	–	96.5	222.00	104.00	100.9	5.45	–
38	L 78 13 81	MERCEDES-BENZ	OM 314, OM 352, OM 364, OM 366	95.8	222.00	104.5	101.5	5.2	–
39	L 78 13 82	MERCEDES-BENZ	–	96.4	222.00	104.5	101.5	5.2	–
40	L 78 13 83	MERCEDES-BENZ	OM 314, OM 352, OM 364, OM 366	95.8	222.00	105.00	102.00	5.2	–
41	L 78 13 84	MERCEDES-BENZ	–	97.01	222.00	104.5	101.5	5.2	–
42	L 78 13 85	MERCEDES-BENZ	–	97.51	222.00	103.4	100.4	5.2	–
43	L 78 13 86	MERCEDES-BENZ	–	97.51	222.00	104.00	101.00	5.2	–
44	L 78 13 87	MERCEDES-BENZ	–	97.01	222.00	106.00	103.00	5.2	–
45	L 78 13 91	MERCEDES-BENZ	OM 457.967, OM 457.951	128.00	266.00	155.5	144.5	10.13+1.0	6.6
46	L 78 13 92	MERCEDES-BENZ	–	130.00	258.00	164.1	150.00	10.12+1.15	–
47	L 78 13 96	MERCEDES-BENZ	–	130.00	258.00	164.2	150.00	10.12+1.1	13.6
48	L 78 13 98	MERCEDES-BENZ	OM 360	114.6	253.5	125.00	120.00	5.5	–
49	L 78 13 100	MERCEDES-BENZ	OM 352	95.8	222.00	103.5	100.4	5.1	–
50	L 78 13 101	MERCEDES-BENZ	OM 128	128.00	270.00	153.71	144.475	9.91+1.0	–
51	L 78 13 102	MERCEDES-BENZ	OM 601	88.00	156.5	96.55	91.575	4.7	–
52	L 78 13 104	MERCEDES-BENZ	–	128.00	253.00	153.8	144.5	10.07+1.0	–
53	L 78 13 105	MERCEDES-BENZ	–	130.00	258.00	164.1	150.00	10.4+1.1	–
54	L 78 13 106	MERCEDES-BENZ	–	128.00	270.00	153.8	144.5	10.07+1.0	–
55	L 78 13 107	MERCEDES-BENZ	–	128.00	253.00	153.8	144.5	10.07+1.0	–
56	L 78 13 112	MERCEDES-BENZ	–	128.00	253.00	153.8	144.5	9.92+1.00	–
57	L 78 13 113	MERCEDES-BENZ	–	87.00	156.5	94.05	92.00	4.7	–
58	L 78 13 114	MERCEDES-BENZ	–	87.00	156.5	94.05	91.00	4.7	–
59	L 78 13 115	MERCEDES-BENZ	–	128.00	266.00	155.5	144.5	10.12+1.1	–
60	L 78 13 117	MERCEDES-BENZ	–	87.00	147.5	93.8	90.9	4.5	–
61	L 78 13 118	MERCEDES-BENZ	–	130.00	258.00	164.1	150.00	10.12+1.1	–
62	L 78 13 119	MERCEDES-BENZ	–	128.00	253.00	153.8	144.5	10.07+1.0	–
63	L 78 13 120	MERCEDES-BENZ	–	125.00	253.00	152.00	140.00	10.07+1.0	–
64	L 78 13 121	MERCEDES-BENZ	–	128.00	266.00	155.5	144.5	10.12+1.1	6.55
65	L 78 13 122	MERCEDES-BENZ	–	130.00	253.00	153.8	144.5	10.07	–
66	L 78 13 123	MERCEDES-BENZ	–	95.8	222.00	103.5	101.4	5.1	–
67	L 78 13 124	MERCEDES-BENZ	–	100.3	220.00	110.5	107.00	6.2	–
68	L 78 13 125	MERCEDES-BENZ	–	87.00	156.5	94.05	91.5	4.7	–
69	L 78 13 133	MERCEDES-BENZ	–	128.00	266.00	155.5	144.00	10.12+1.0	–
70	L 78 13 136	MERCEDES-BENZ	–	128.00	253.00	153.8	144.5	10.07+1.0	–
71	L 78 13 138	MERCEDES-BENZ	–	128.00	266.3	155.48	144.5	10.12+1.1	–
72	L 78 13 139	MERCEDES-BENZ	–	128.00	253.00	153.8	144.5	10.07+1.0	–
73	L 78 13 142	MERCEDES-BENZ	–	130.00	258.00	164.05	150.00	10.12+1.15	–
74	L 78 13 143	MERCEDES-BENZ	–	130.00	258.00	164.2	150.00	10.12+1.1	13.55
75	L 78 13 144	MERCEDES-BENZ	–	125.00	253.00	153.8	144.5	9.92+1.1	–
76	L 78 13 145	MERCEDES-BENZ	–	128.00	270.00	153.8	144.5	9.92+1.0	–
77	L 78 13 146	MERCEDES-BENZ	–	127.6	287.5	137.5	133.5	5.5	–
78	L 78 13 147	MERCEDES-BENZ	–	125.00	253.00	153.8	144.6	9.92+1.0	–
79	L 78 13 148	MERCEDES-BENZ	–	125.00	253.00	153.8	144.5	9.92+1.0	–
80	L 78 13 149	MERCEDES-BENZ	–	128.00	270.00	153.8	144.5	9.92+1.0	–
81	L 78 13 150	MERCEDES-BENZ	–	128.00	270.00	153.8	144.5	9.92+1.0	–
82	L 78 13 151	MERCEDES-BENZ	–	128.00	253.00	153.75	144.46	9.92+1.0	–
83	L 78 13 152	MERCEDES-BENZ	–	128.00	253.00	153.725	144.46	10.07+1.0	–
84	L 78 13 153	MERCEDES-BENZ	–	128.00	266.00	155.5	144.5	10.12+1.1	–
85	L 78 13 154	MERCEDES-BENZ	–	130.00	258.00	164.00	150.00	10.12+1.1	–
86	L 78 13 155	MERCEDES-BENZ	–	128.00	266.00	155.5	144.5	10.12+1.0	6.6
87	L 78 13 156	MERCEDES-BENZ	–	130.00	258.00	164.00	150.00	10.12+1.15	–
88	L 78 13 157	MERCEDES-BENZ	–	128.00	269.00	153.8	144.5	10.07	–
89	L 78 13 158	MERCEDES-BENZ	–	128.00	266.00	155.5	144.45	10.12+1.1	–
90	L 78 13 159	MERCEDES-BENZ	–	128.00	266.00	155.5	144.45	10.12+1.1	–
91	L 78 13 160	MERCEDES-BENZ	–	128.00	253.00	153.8	144.5	9.92+1.1	–
92	L 78 13 161	MERCEDES-BENZ	–	125.00	253.00	152.00	140.00	10.07+1.0	–
93	L 78 13 164	MERCEDES-BENZ	–	88.00	156.5	96.55	91.5	4.7	–
94	L 78 13 166	MERCEDES-BENZ	–	96.74	222.00	105.02	102.02	5.2	–
95	L 78 13 167	MERCEDES-BENZ	–	132.00	256.00	159.00	141.96	202.00	9.0
96	L 78 13 168	MERCEDES-BENZ	–	132.00	256.00	159.00	141.95	202.0	–
97	L 78 13 137	MERCEDES-BENZ	–	100.3	223.00	110.3	106.9	9.1	–
98	L 78 13 165	MERCEDES-BENZ	–	125.00	252.85	151.926	139.963	10.06+1.0	–
99	L 78 13 176	MERCEDES-BENZ	OM 352	97.51	222.00	104.5	101.5	5.2	–
100	L 78 13 179	MERCEDES-BENZ	OM 352	97.00	222.00	105.00	102.00	5.2	–
101	L 78 13 180	MERCEDES-BENZ	OM 352	95.8	222.00	104.5	101.00	5.2	–
102	L 78 13 177	MERCEDES-BENZ	–	115.00	253.5	125.00	120.00	5.52	–
103	L 78 13 181	MERCEDES-BENZ	–	130.00	253.00	153.8	140.5	9.92 +1.00	–
104	L 78 13 183	MERCEDES-BENZ	–	139.00	270.00	167.00	149.00	216.28	–
105	L 78 13 184	MERCEDES-BENZ	–	128.00	253.00	153.8	144.5	10.07+1.00	–
106	L 78 13 188	MERCEDES-BENZ	–	97.5	222.00	103.4	101.00	5.2	–
107	L 78 13 189	MERCEDES-BENZ	–	97.00	222.00	103.5	100.4	5.2	–
108	L 78 13 190	MERCEDES-BENZ	–	128.00	270.00	153.71	144.5	9.91+1	–
109	L 78 13 192	MERCEDES-BENZ	–	102.00	220.00	109.4	106.00	6.2	–
110	L 78 13 193	MERCEDES-BENZ	OM 470	125.00	237.5	150.00	135.00	185.7	8.9
111	L 78 13 194	MERCEDES-BENZ	–	128.00	266.00	155.5	144.5	10.12+1.15	6.55
112	L 78 13 198	MERCEDES-BENZ	–	106.00	220.00	–	110	–	–
113	L 78 13 199	MERCEDES-BENZ	–	88.00	156.5	96.55	91.55	4.8	–
114	L 78 13 200	MERCEDES-BENZ	–	139.00	270.00	167.00	149.00	216.275	10.9
115	L 78 13 204	MERCEDES-BENZ	–	93.4	174.95	98.5	97.05	5.17	–
116	L 78 13 205	MERCEDES-BENZ	–	128.00	266.00

MAN

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 13 03	MAN	D 0226 MFA	102.00	217.00	111.00	105.99	8.04	–
2	L 78 13 04	MAN	–	108.00	254.00	118.00	112.99	5.0	–
3	L 78 13 05	MAN	–	108.00	254.00	118.00	113.49	5.0	–
4	L 78 13 06	MAN	D 2156 HNY	121.00	287.00	132.00	126.49	8.0	–
5	L 78 13 07	MAN	D 2156 HM 3	121.00	287.00	132.00	125.99	8.0	–
6	L 78 13 08	MAN	D 2156 HMN 3	121.00	287.00	132.00	126.99	8.0	–
7	L 78 13 09	MAN	D 2356 HM 2	123.00	287.00	132.00	125.99	8.03	–
8	L 78 13 10	MAN	D 2356 HM 10/2/9, D 2356 HMN 2 /5, D 2356 HMX/6DK	123.00	287.00	132.00	126.49	8.03	–
9	L 78 13 11	MAN	D 2356 HM 10/2/9, D 2356 HMN 2 /5, D 2356 HMX/6DK	123.00	287.00	132.00	126.99	8.03	–
10	L 78 13 13	MAN	D 2530 MTXF	125.00	253.00	152.00	140.00	10.05+1	–
11	L 78 13 14	MAN	OM 407 931 (AFS)/A/AH/H/HA/LA, OM 496.900-027 (AFS	125.00	265.00	152.00	140.00	10.07+1.0	–
12	L 78 13 15	MAN	D 2566 MK	125.00	270.00	152.00	140.00	10.05+1.0	–
13	L 78 13 16	MAN	18.480 FC, FLC, FLLC, FLLRC, FLLW, FLRC	126.00	257.5	150.00	139.5	8.07	–
14	L 78 13 17	MAN	D-2840 LF 460	128.00	253.00	153.8	144.45	10.05+1.0	–
15	L 78 13 18	MAN	D 2840 LF 460	128.00	253.00	154.3	145.00	10.05+1.0	–
16	L 78 13 19	MAN	D 2876 LF 12	128.00	268.00	153.8	144.5	8.07	–
17	L 78 13 20	MAN	D-2866, D-2876	128.00	269.00	153.8	144.5	10.07	–
18	L 78 13 21	MAN	–	128.00	270.00	153.76	144.475	10.07+1.05	–
19	L 78 13 22	MAN	D 2876 LF 05	128.00	270.00	153.8	144.5	10.07+1.0	–
20	L 78 13 62	MAN	D 2876 LF 12, D 2876 LF 13, D 2876 LOH 20, D 2876 LOH 21	128.00	268.00	153.726	144.45	8.07	–
21	L 78 13 67	MAN	D 2865 LU 04, D 2866 LF 25, D 2866 LOH 35, D 2866	128.00	270.00	153.8	144.5	10.27+1.0	–
22	L 78 13 68	MAN	D 2865 LU 05, D 2866 LF 25, D 2866 LOH 35, D 2866	128.00	270.00	153.8	144.5	10.57+1.0	–
23	L 78 13 72	MAN	D 2566 MK	125.00	270.00	152.00	140.00	10.05+1.0	–
24	L 78 13 71	MAN	D 2876 LF 05	128.00	270.00	153.8	144.5	10.07+1.0	–
25	L 78 13 77	MAN	D 0826	108.00	217.00	116.00	111.49	4.04	–
26	L 78 13 78	MAN	D 0826	108.00	217.00	116.00	111.99	4.04	–
27	L 78 13 90	MAN	D 2066 LUH 05	120.00	260.00	150.00	139.5	8.07	–
28	L 78 13 94	MAN	–	128.00	253.00	153.757	144.475	10.05+1.1	–
29	L 78 13 97	MAN	–	128.00	270.00	153.8	144.5	10.07+1.0	–
30	L 78 13 116	MAN	–	128.00	270.00	153.8	144.5	10.07+1.00	–
31	L 78 13 129	MAN	–	126.00	257.5	150.00	139.5	8.07	11.2
32	L 78 13 135	MAN	–	125.00	270.00	152.00	140.00	10.05+1.00	–
33	L 78 13 162	MAN	–	128.00	253.00	153.8	144.5	10.05+1.0	–
34	L 78 13 182	MAN	–	107.2	217.00	–	111.27	–	–
35	L 78 13 187	MAN	–	115.00	241.5	141.4	129.5	10.05	10.5
36	L 78 13 191	MAN	E 3262, E 3268	132.00	262.00	163.3	149.5	10.06	–
37	L 78 13 178	MAN	–	108.00	217.00	116.00	111.59	4.04	–
38	L 78 13 197	MAN	–	123.00	270.00	133.00	127.00	8.05	–
39	L 78 13 201	MAN	–	120.00	260.00	150.00	139.5	8.07	9
40	L 78 13 202	MAN	–	128.00	270.00	153.8	144.5	10.07+1.0	–
41	L 78 13 206	MAN	–	126.00	257.5	150.00	139.5	8.12	–

KOMATSU

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 11 02	KOMATSU	6D125, S6D125	125.03	256.5	153.02	141.4	10.2+1.8	–
2	L 78 11 05	KOMATSU	–	108.00	219.5	120.00	111.5	5.10+0.90	–
3	L 78 11 06	KOMATSU	–	95.00	180.00	104.00	98.00	4.0	–
4	L 78 11 07	KOMATSU	–	110.00	225.00	120.00	115.00	5.10+0.90	–
5	L 78 11 08	KOMATSU	–	92.00	184.00	114.9	106.00	10.10+0.850	–
6	L 78 11 09	KOMATSU	–	94.00	181.00	116.9	108.00	10.10+0.850	–
7	L 78 11 10	KOMATSU	–	105.00	223.00	125.4	118.00	10.10+0.90	–
8	L 78 11 11	KOMATSU	–	120.00	293.00	150.00	140.00	13.10+1.0	–
9	L 78 11 12	KOMATSU	6D105	105.024	223.00	127.1	118.7	10.11+0.90	–

KIA

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 11 01	KIA	–	80.015	129.75	87.45	84.095	50.063	–
2	L 78 11 04	KIA	–	74.98	129.5	87.45	84.1	50.0	–

JOHN DEERE

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 10 01	JOHN DEERE	–	102.00	197.00	125.00	111.00	6.0+.75	–
2	L 78 10 02	JOHN DEERE	6359 A	106.5	197.5	126.00	115.7	6.0+0.8	–
3	L 78 10 03	JOHN DEERE	6466TF	115.87	228.2	135.1	125.06	12.03+1.2	–
4	L 78 10 04	JOHN DEERE	6531D/5200/6030/JD 760	120.00	287.00	139.9	134.5	10.015+1.0	–
5	L 78 10 05	JOHN DEERE	–	118.4	228.5	135.15	125.1	12+1.25	–
6	L 78 10 06	JOHN DEERE	–	106.5	219.00	126.00	115.7	6+0.8	–
7	L 78 10 07	JOHN DEERE	–	106.5	219.00	125.9	115.73	6.040+0.85	–
8	L 78 10 08	JOHN DEERE	–	106.5	197.00	126.00	115.7	6.0+0.8	–
9	L 78 10 09	JOHN DEERE	–	106.5	218.82	125.9	115.7	8.022+0.80	–
10	L 78 10 10	JOHN DEERE	–	106.5	196.8	126.00	115.72	6.045+0.8	–
11	L 78 10 11	JOHN DEERE	–	106.5	218.82	125.9	115.7	6.04+0.8	–
12	L 78 10 12	JOHN DEERE	–	115.9	233.1	135.1	125.13	8.20+1.1	–
13	L 78 10 13	JOHN DEERE	–	107.98	232.79	130.1	117.55	6.42+1.0	–
14	L 78 10 14	JOHN DEERE	–	106.5	196.82	126.00	115.71	6.045+0.815	–
15	L 78 10 15	JOHN DEERE	–	108.00	231.9	131.546	121.81	6.426+0.711	–
16	L 78 10 16	JOHN DEERE	–	106.49	197.00	126.00	115.71	6.05+0.84	–
17	L 78 10 19	JOHN DEERE	–	106.48	217.6	125.93	115.68	6.007+0.755	–
18	L 78 10 17	JOHN DEERE	–	108.00	232.9	130.2	117.58	6.451+1.041	–
19	L 78 10 20	JOHN DEERE	–	102.00	196.09	125.06	111.061	6.065+0.81	–
20	L 78 10 21	JOHN DEERE	MN-4VD 14, 5/12-1SRW	120.00	287.00	140.00	134.5	10.05+1.00	–
21	L 78 10 22	JOHN DEERE	4045T, 6068D	106.5	219.00	125.88	115.72	6.03+0.80	–
22	L 78 10 23	JOHN DEERE	–	108.00	232.5	131.52	117.52	7.05	–

ISUZU

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 09 05	ISUZU	–	101.9	214.4	120.142	113.05	8.94	–
2	L 78 09 06	ISUZU	–	108.00	242.5	127.00	122.225	8.103	–
3	L 78 09 10	ISUZU	–	115.00	190.00	123.65	117.98	6.05	–
4	L 78 09 11	ISUZU	–	115.00	180.00	123.65	117.98	6.08	–
5	L 78 09 12	ISUZU	–	115.00	210.00	123.65	117.98	6.05	–
6	L 78 09 13	ISUZU	–	110.00	210.00	119.7	112.98	6.05	–
7	L 78 09 14	ISUZU	–	112.00	180.00	121.65	115.00	6.1	–
8	L 78 09 20	ISUZU	–	105.00	223.00	127.1	118.67	10.10+0.900	–

HYUNDAI

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 08 15	HYUNDAI	–	70.00	149.00	–	74.00	–	–
2	L 78 08 17	HYUNDAI	HB20 GAMMA 1.6 L 16V FLEX – FLEX	76.1	151.8	–	80.00	–	–

HINO

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 08 01	HINO	W04D/E, W06D/E	104.02	201.00	111.95	107.00	8.045+0.7	–
2	L 78 08 02	HINO	H07C, H07D, EH700	110.06	204.00	117.95	113	8.05+0.877	–
3	L 78 08 03	HINO	JO8CT, JO5C	114.04	204.00	121.95	117.00	8.05 +0.7	–
4	L 78 08 04	HINO	–	104.00	201.00	111.95	107.00	8.05+0.9	–
5	L 78 08 05	HINO	–	103.3	201.00	111.95	107.00	8.00+1.0	–
6	L 78 08 06	HINO	–	104.00	201.00	111.95	107.00	8.00+1.0	–
7	L 78 08 07	HINO	–	110.00	204.00	117.95	113.00	8.00+0.75	–
8	L 78 08 08	HINO	–	137.00	247.7	164.95	152.98	12.10+0.715	–
9	L 78 08 09	HINO	–	146.00	244.5	161.00	154.00	8.53+0.70	–
10	L 78 08 10	HINO	–	146.00	244.5	159.00	152.00	8.050+0.70	–
11	L 78 08 11	HINO	–	110.00	204.00	118.00	113.00	8.050+0.70	–
12	L 78 08 12	HINO	–	150.00	244.6	161.00	154.00	8.540+0.70	–
13	L 78 08 13	HINO	–	139.00	247.7	167.00	156.00	12.10+0.70	–
14	L 78 08 14	HINO	–	139.00	247.7	166.00	154.00	12.050+0.90	–

FORD

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 06 14	FORD	–	70.31	134.00	89.1	80.97	94.79	–
2	L 78 06 15	FORD	–	73.4	148.4	79.5	78.00	5.1	–
3	L 78 06 16	FORD	–	75.3	134.00	87.7	78.47	94.79	–
4	L 78 06 17	FORD	–	77.00	134.00	89.1	80.97	94.79	–
5	L 78 06 18	FORD	–	85.3	167.00	92.1	89.00	3.25	–
6	L 78 06 19	FORD	–	89.2	165.00	95.5	92.47	3.0	–
7	L 78 06 20	FORD	–	89.9	137.9	94.97	94.03	5.8	–
8	L 78 06 21	FORD	4FA, 4HB, 4EB	93.14	171.45	–	96.8	–	–
9	L 78 06 22	FORD	–	92.7	174.00	98.43	97.5	5.57	–
10	L 78 06 23	FORD	5000 6 Y	110.94	208.3	120.4	114.42	2.59	–
11	L 78 06 39	FORD	–	81.9	146.00	87.5	86.02	5.0	–
12	L 78 06 48	FORD	–	85.2	132.00	91.00	89.03	4.0	–
13	L 78 06 49	FORD	–	89.9	137.9	94.97	94.03	5.8	–
14	L 78 06 50	FORD	–	89.2	165.12	95.5	92.47	3.0	–
15	L 78 06 59	FORD	–	110.5	221.00	–	114.435	–	–
16	L 78 06 60	FORD	MWM D 208 2/3/4/6, MWM D 308 2/3/4/6	95.00	200.00	113.95	105.87	8.1	–
17	L 78 06 61	FORD	–	67.85	128.00	74.00	72.1	3.92	–
18	L 78 06 64	FORD	RANGER, DURATORQ 2.2 L 16 V DOHC L4	85.1	163.00	93.96	89.00	2.9	–
19	L 78 06 65	FORD	–	71.1	116.0	–	74.865	–	–
20	L 78 06 66	FORD	FORD RANGER POWER STROKE NGD 3.0E 3.0 L 16V DOHC L4 DIESEL	95.1	190.0	–	99.02	–	–
21	L 78 06 67	FORD	FORD ZETEC ROCAM 1.6L – ECOSPORT / COURIER	81.1	148.00	–	85.025	–	–
22	L 78 06 69	FORD	FORD KA ZETEC ROCAM 1.0L	67.25	120.00	74.00	72.00	3.9	–

FIAT

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 06 01	FIAT	–	70.00	128.9	75.5	74.00	5.08	–
2	L 78 06 02	FIAT	–	75.13	144.00	81.65	80.00	4.9	–
3	L 78 06 03	FIAT	F2BE0681D	115.00	211.00	136.5	128.5	8.96+1.2	–
4	L 78 06 04	FIAT	8460.21.002	120.00	250.00	144.8	134.00	10.0+1.0	–
5	L 78 06 05	FIAT	F3B3681B	135.00	255.00	161.6	152.00	9.96+1.2	–
6	L 78 06 06	FIAT	8210 22 000	137.00	281.6	147.00	143.03	6.04	–
7	L 78 06 07	FIAT	8210 42 101	137.00	281.6	147.00	143.07	6.04	–
8	L 78 06 08	FIAT	8210 02 000	137.00	281.6	147.00	143.27	6.04	–
9	L 78 06 09	FIAT	8210 42 101	137.00	281.6	147.00	143.5	6.04	–
10	L 78 06 10	FIAT	–	137.01	282.00	149.00	143.05	6.0	–
11	L 78 06 12	FIAT	–	137.02	281.6	149.00	143.02	6.04	–
12	L 78 06 13	FIAT	–	137.08	281.6	148.9	143.02	6.04	–
13	L 78 06 24	FIAT	–	83.1	133.65	88.88	88.05	5.1	–
14	L 78 06 26	FIAT	–	137.02	282.00	149.00	143.02	6.0	–
15	L 78 06 27	FIAT	–	137.02	282.00	149.00	143.27	6.0	–
16	L 78 06 28	FIAT	–	137.02	282.00	149.00	143.07	6.0	–
17	L 78 06 30	FIAT	–	137.00	281.6	146.9	143.03	6.08	–
18	L 78 06 33	FIAT	F3A TCA, F3AE0681B/D	125.00	239.00	150.6	140.00	9.96 + 1.2	–
19	L 78 06 34	FIAT	–	137.02	282.00	147.00	143.02	6.0	–
20	L 78 06 35	FIAT	F3AE0681B	125.00	238.75	150.5	139.9	9.95+1.2	–
21	L 78 06 36	FIAT	–	120.00	250.025	144.8	134.00	10.025+1.0	–
22	L 78 06 37	FIAT	–	115.00	235.00	128.84	122.00	167.0	–
23	L 78 06 38	FIAT	–	69.2	114.2	74.65	73.04	4.95	–
24	L 78 06 41	FIAT	8340.05	115.00	235.1	129.02	121.6	170.0	–
25	L 78 06 42	FIAT	–	110.00	280.4	132.00	122.5	11.12+0.40	–
26	L 78 06 43	FIAT	–	122.00	305.00	152.00	132.00	215.00	–
27	L 78 06 44	FIAT	–	125.00	305.00	152.00	132.00	215.00	–
28	L 78 06 40	FIAT	–	115.00	211.00	136.45	128.5	8.96+1.2	–
29	L 78 06 45	FIAT	F3A TCA, F3AE0681B/D	125.00	238.75	150.6	139.925	9.95+1.15	–
30	L 78 06 46	FIAT	–	137.00	282.00	147.00	143.05	6.0	–
31	L 78 06 47	FIAT	–	69.2	114.2	74.65	73.04	4.95	–
32	L 78 06 51	FIAT	–	137.00	281.6	147.00	143.02	6.04	–
33	L 78 06 53	FIAT	–	103.00	198.00	–	107.02	–	–
34	L 78 06 54	FIAT	–	103.1	198.35	109.85	106.94	5.05	–
35	L 78 06 55	FIAT	–	103.1	198.2	109.85	107.02	5.05	–
36	L 78 06 56	FIAT	–	102.65	198.4	–	107.00	–	–
37	L 78 06 52	FIAT	–	137.02	282.00	149.00	143.02	6.0	–
38	L 78 06 58	FIAT	–	137.02	182.00	149.00	143.51	6.00	–
39	L 78 06 57	FIAT	–	103.1	198.35	–	107.00	–	–
40	L 78 06 62	FIAT	–	135.00	254.2	161.6	152.00	9.96+1.2	–
41	L 78 06 63	FIAT	–	115.00	235.00	128.8	122.00	167.00	–
42	L 78 06 68	FIAT	Fiat Jeep ETORQ 370 A 0011 1.8L 16V – PUNTO / TORO / RENEGADE	79.7	128.00	–	83.1	–	–

DETROIT

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 04 37	DETROIT	–	98.5	251.75	121.37	110.63	6.4 + 1.25	–
2	L 78 04 38	DETROIT	–	107.95	282.8	121.24	117.49	6.37	–
3	L 78 04 39	DETROIT	–	146.05	314.72	174.65	162.53	11.47 + 1.25	–
4	L 78 04 40	DETROIT	–	122.95	280.86	140.84	132.475	7.86 + 1.25	–

DEUTZ

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 04 08	DEUTZ	–	91.00	180.5	99.00	94.00	4.56	–
2	L 78 04 09	DEUTZ	BF4M1012EC	94.00	196.00	102.5	98.5	5.0	–
3	L 78 04 11	DEUTZ	BFM1015/C	132.00	268.1	159.4	146.94	9.0 + 1.22	–
4	L 78 04 12	DEUTZ	BFM2015, BF6M1015C	132.00	268.5	159.5	146.93	9.0 + 1.25	14.0
5	L 78 04 13	DEUTZ	BF4M1013EC, TCD 2013 L6 2V	108.00	229.1	128.5	120.00	9.0 + 1.1	–
6	L 78 04 14	DEUTZ	BF 4M	108.00	229.1	128.5	120.00	9.0 + 1.1	–
7	L 78 04 15	DEUTZ	–	108.00	229.1	128.5	120.00	9.0 + 1.1	–
8	L 78 04 16	DEUTZ	–	132.00	269.00	159.46	148.00	7.79	–
9	L 78 04 17	DEUTZ	–	132.00	268.5	159.5	147.00	9.02 + 1.25	–
10	L 78 04 18	DEUTZ	BF6M1015	132.00	268.5	158.00	147.00	9.02 + 1.2	–
11	L 78 04 20	DEUTZ	–	100.00	190.15	105.00	104.11	5.0	–
12	L 78 04 23	DEUTZ	–	98.00	188.00	105.00	101.00	4.5	–
13	L 78 04 27	DEUTZ	–	100.00	190.00	105.00	104.18	5.2	–
14	L 78 04 28	DEUTZ	–	97.5	193.00	105.5	101.5	4.7	–
15	L 78 04 29	DEUTZ	–	93.00	180.5	101.00	97.05	5.0	–
16	L 78 04 30	DEUTZ	–	91.00	180.5	99.00	94.00	4.56	–
17	L 78 04 31	DEUTZ	–	94.00	180.5	101.00	97.025	5.0	–
18	L 78 04 32	DEUTZ	–	90.2	180.5	99.00	94.00	4.56	–
19	L 78 04 33	DEUTZ	–	93.1	175.00	98.5	97.04	5.0	–
20	L 78 04 34	DEUTZ	–	94.00	175.00	98.5	97.02	5.0	–
21	L 78 04 35	DEUTZ	–	96.00	175.00	104.525	100.495	5.5	–
22	L 78 04 36	DEUTZ	–	97.00	193.00	105.00	101.02	4.5	–
23	L 78 04 41	DEUTZ	–	91.00	175.8	99.00	94.00	4.56	–
24	L 78 04 42	DEUTZ	–	108.00	229.1	128.5	120.00	10 + 1.1	–
25	L 78 04 43	DEUTZ	–	95.2	175.00	104.5	100.575	5.55	–
26	L 78 04 44	DEUTZ	–	101.1	190.15	105.00	104.00	5.05	–
27	L 78 04 48	DEUTZ	–	93.00	196.00	102.5	98.5	5.0	–
28	L 78 04 51	DEUTZ	–	92.00	180.3	100.00	95.00	4.56	–
29	L 78 04 52	DEUTZ	–	110.00	226.00	131.7	118.00	8.06	–
30	L 78 04 53	DEUTZ	–	108.00	229.1	129.00	120.00	10 + 1.10	–

CUMMINS

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 03 01	CUMMINS	4B/6B, 6BT5.9	101.2	200.00	–	104.55	–	–
2	L 78 03 02	CUMMINS	6CT AA 8.3, 6C 8.3, ISC-QSC	114.00	237.1	132.95	125.68	123.04 + 1.25	–
3	L 78 03 06	CUMMINS	6C, 8.3, ISC, QSC, KOMATSU-SA6D114	114.00	237.1	130.95	125.68	123.04 + 1.25	–
4	L 78 03 03	CUMMINS	–	114.00	238.35	132.95	125.73	123.04 + 1.25	–
5	L 78 03 04	CUMMINS	NHS 743-HR6, NH 220, VT1485, H743	130.162	303.4	155.664	145.974	11.176 + 1.778	–
6	L 78 03 05	CUMMINS	NT855, N14	139.695	288.16	166.776	155.499	9.055 + 1.829	–
7	L 78 03 07	CUMMINS	6CT AA 8.3, 6C 8.3, ISC	114.00	234.1	130.95	125.68	123.04 + 1.25	–
8	L 78 03 08	CUMMINS	6CT AA 8.3, 6C 8.3	114.00	234.1	130.95	125.68	123.04 + 1.25	–
9	L 78 03 09	CUMMINS	–	139.7	288.138	166.776	155.499	9.042 + 1.778	–
10	L 78 03 10	CUMMINS	–	139.695	286.639	167.284	155.499	9.550 + 1.829	–
11	L 78 03 11	CUMMINS	–	125.00	241.00	146.00	137.4	100 + 1.20	–
12	L 78 03 13	CUMMINS	–	130.18	306.8	154.78	144.06	12.72 + 0.60	–
13	L 78 03 14	CUMMINS	–	125.00	241.3	145.975	137.95	100.00 + 1.22	–
14	L 78 03 15	CUMMINS	–	114.00	238.4	130.94	125.66	123.032 + 1.20	–
15	L 78 03 16	CUMMINS	–	114.00	238.4	132.95	125.7	123.0325 + 1.20	–
16	L 78 03 17	CUMMINS	–	114.00	235.3	131.00	125.68	123.060 + 1.25	–
17	L 78 03 18	CUMMINS	–	114.00	238.00	131.00	125.68	123.060 + 1.25	–
18	L 78 03 19	CUMMINS	–	114.00	235.45	130.95	125.67	123.0325 + 1.20	–
19	L 78 03 21	CUMMINS	4B/6B, 6BT5.9	101.2	200.00	–	104.57	–	–
20	L 78 03 20	CUMMINS	–	139.71	288.163	166.75	155.47	9.029 + 1.778	–
21	L 78 03 22	CUMMINS	–	137.00	272.00	161.00	150.00	120.30 + 1.50	–
22	L 78 03 28	CUMMINS	–	106.1	203.000	–	110.1	–	–
23	L 78 03 29	CUMMINS	4BT 3.9, 4BTA 3.9, 6B5.9, 6BT5.9, 6BTA5.9	101.2	200.000	–	105.00	–	–

CATERPILLAR

Sr No.	Part No.	Suitable For	Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire Lip (H+F)	Relief Height (R)
1	L 78 03 12	CATERPILLAR	D 330 C / D 333 C	120.65	255.00	142.9	134.4	10.3 + 1.2	–
2	L 78 03 26	CATERPILLAR	–	137.16	274.3	165.13	153.745	8.880 + 1.050	–
3	L 78 03 27	CATERPILLAR	–	170.00	358.65	211.55	191.86	12.665 + 1.00	–
4	L 78 03 23	CATERPILLAR	–	125.00	246.8	151.245	141.37	10.10 + 1.135	–
5	L 78 03 24	CATERPILLAR	–	120.65	254.9	142.89	134.35	10.275 + 1.015	–
6	L 78 03 25	CATERPILLAR	–	130.03	242.951	151.41	141.376	11.303 + 1.143	–

BEDFORD

No.	Part No.	Suitable for	Used for Engine Code	Bore Dia. (B)	Length (L)	MCD (C)	Sealing Dia. (D)	Height + Fire lip (H+F)	Relief Height (R)
1	L 78 02 04	BEDFORD	–	102.2	216.15	111.1	108.04	4.76	–

img:is([sizes=auto i],[sizes^="auto," i]){contain-intrinsic-size:3000px 1500px}img.wp-smiley,img.emoji{display:inline !important;border:none !important;box-shadow:none !important;height:1em !important;width:1em !important;margin:0 .07em !important;vertical-align:-.1em !important;background:none !important;padding:0 !important}:root{--wp--preset--aspect-ratio--square:1;--wp--preset--aspect-ratio--4-3:4/3;--wp--preset--aspect-ratio--3-4:3/4;--wp--preset--aspect-ratio--3-2:3/2;--wp--preset--aspect-ratio--2-3:2/3;--wp--preset--aspect-ratio--16-9:16/9;--wp--preset--aspect-ratio--9-16:9/16;--wp--preset--color--black:#000;--wp--preset--color--cyan-bluish-gray:#abb8c3;--wp--preset--color--white:#fff;--wp--preset--color--pale-pink:#f78da7;--wp--preset--color--vivid-red:#cf2e2e;--wp--preset--color--luminous-vivid-orange:#ff6900;--wp--preset--color--luminous-vivid-amber:#fcb900;--wp--preset--color--light-green-cyan:#7bdcb5;--wp--preset--color--vivid-green-cyan:#00d084;--wp--preset--color--pale-cyan-blue:#8ed1fc;--wp--preset--color--vivid-cyan-blue:#0693e3;--wp--preset--color--vivid-purple:#9b51e0;--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple:linear-gradient(135deg,#0693e3 0%,#9b51e0 100%);--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan:linear-gradient(135deg,#7adcb4 0%,#00d082 100%);--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange:linear-gradient(135deg,#fcb900 0%,#ff6900 100%);--wp--preset--gradient--luminous-vivid-orange-to-vivid-red:linear-gradient(135deg,#ff6900 0%,#cf2e2e 100%);--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray:linear-gradient(135deg,#eee 0%,#a9b8c3 100%);--wp--preset--gradient--cool-to-warm-spectrum:linear-gradient(135deg,#4aeadc 0%,#9778d1 20%,#cf2aba 40%,#ee2c82 60%,#fb6962 80%,#fef84c 100%);--wp--preset--gradient--blush-light-purple:linear-gradient(135deg,#ffceec 0%,#9896f0 100%);--wp--preset--gradient--blush-bordeaux:linear-gradient(135deg,#fecda5 0%,#fe2d2d 50%,#6b003e 100%);--wp--preset--gradient--luminous-dusk:linear-gradient(135deg,#ffcb70 0%,#c751c0 50%,#4158d0 100%);--wp--preset--gradient--pale-ocean:linear-gradient(135deg,#fff5cb 0%,#b6e3d4 50%,#33a7b5 100%);--wp--preset--gradient--electric-grass:linear-gradient(135deg,#caf880 0%,#71ce7e 100%);--wp--preset--gradient--midnight:linear-gradient(135deg,#020381 0%,#2874fc 100%);--wp--preset--font-size--small:13px;--wp--preset--font-size--medium:20px;--wp--preset--font-size--large:36px;--wp--preset--font-size--x-large:42px;--wp--preset--spacing--20:.44rem;--wp--preset--spacing--30:.67rem;--wp--preset--spacing--40:1rem;--wp--preset--spacing--50:1.5rem;--wp--preset--spacing--60:2.25rem;--wp--preset--spacing--70:3.38rem;--wp--preset--spacing--80:5.06rem;--wp--preset--shadow--natural:6px 6px 9px rgba(0,0,0,.2);--wp--preset--shadow--deep:12px 12px 50px rgba(0,0,0,.4);--wp--preset--shadow--sharp:6px 6px 0px rgba(0,0,0,.2);--wp--preset--shadow--outlined:6px 6px 0px -3px #fff,6px 6px #000;--wp--preset--shadow--crisp:6px 6px 0px #000}:root{--wp--style--global--content-size:800px;--wp--style--global--wide-size:1200px}:where(body){margin:0}.wp-site-blocks>.alignleft{float:left;margin-right:2em}.wp-site-blocks>.alignright{float:right;margin-left:2em}.wp-site-blocks>.aligncenter{justify-content:center;margin-left:auto;margin-right:auto}:where(.wp-site-blocks)>*{margin-block-start:24px;margin-block-end:0}:where(.wp-site-blocks)>:first-child{margin-block-start:0}:where(.wp-site-blocks)>:last-child{margin-block-end:0}:root{--wp--style--block-gap:24px}:root :where(.is-layout-flow)>:first-child{margin-block-start:0}:root :where(.is-layout-flow)>:last-child{margin-block-end:0}:root :where(.is-layout-flow)>*{margin-block-start:24px;margin-block-end:0}:root :where(.is-layout-constrained)>:first-child{margin-block-start:0}:root :where(.is-layout-constrained)>:last-child{margin-block-end:0}:root :where(.is-layout-constrained)>*{margin-block-start:24px;margin-block-end:0}:root :where(.is-layout-flex){gap:24px}:root :where(.is-layout-grid){gap:24px}.is-layout-flow>.alignleft{float:left;margin-inline-start:0;margin-inline-end:2em}.is-layout-flow>.alignright{float:right;margin-inline-start:2em;margin-inline-end:0}.is-layout-flow>.aligncenter{margin-left:auto !important;margin-right:auto !important}.is-layout-constrained>.alignleft{float:left;margin-inline-start:0;margin-inline-end:2em}.is-layout-constrained>.alignright{float:right;margin-inline-start:2em;margin-inline-end:0}.is-layout-constrained>.aligncenter{margin-left:auto !important;margin-right:auto !important}.is-layout-constrained>:where(:not(.alignleft):not(.alignright):not(.alignfull)){max-width:var(--wp--style--global--content-size);margin-left:auto !important;margin-right:auto !important}.is-layout-constrained>.alignwide{max-width:var(--wp--style--global--wide-size)}body .is-layout-flex{display:flex}.is-layout-flex{flex-wrap:wrap;align-items:center}.is-layout-flex>:is(*, div){margin:0}body .is-layout-grid{display:grid}.is-layout-grid>:is(*, div){margin:0}body{padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px}a:where(:not(.wp-element-button)){text-decoration:underline}:root :where(.wp-element-button, .wp-block-button__link){background-color:#32373c;border-width:0;color:#fff;font-family:inherit;font-size:inherit;font-style:inherit;font-weight:inherit;letter-spacing:inherit;line-height:inherit;padding-top:calc(.667em + 2px);padding-right:calc(1.333em + 2px);padding-bottom:calc(.667em + 2px);padding-left:calc(1.333em + 2px);text-decoration:none;text-transform:inherit}.has-black-color{color:var(--wp--preset--color--black) !important}.has-cyan-bluish-gray-color{color:var(--wp--preset--color--cyan-bluish-gray) !important}.has-white-color{color:var(--wp--preset--color--white) !important}.has-pale-pink-color{color:var(--wp--preset--color--pale-pink) !important}.has-vivid-red-color{color:var(--wp--preset--color--vivid-red) !important}.has-luminous-vivid-orange-color{color:var(--wp--preset--color--luminous-vivid-orange) !important}.has-luminous-vivid-amber-color{color:var(--wp--preset--color--luminous-vivid-amber) !important}.has-light-green-cyan-color{color:var(--wp--preset--color--light-green-cyan) !important}.has-vivid-green-cyan-color{color:var(--wp--preset--color--vivid-green-cyan) !important}.has-pale-cyan-blue-color{color:var(--wp--preset--color--pale-cyan-blue) !important}.has-vivid-cyan-blue-color{color:var(--wp--preset--color--vivid-cyan-blue) !important}.has-vivid-purple-color{color:var(--wp--preset--color--vivid-purple) !important}.has-black-background-color{background-color:var(--wp--preset--color--black) !important}.has-cyan-bluish-gray-background-color{background-color:var(--wp--preset--color--cyan-bluish-gray) !important}.has-white-background-color{background-color:var(--wp--preset--color--white) !important}.has-pale-pink-background-color{background-color:var(--wp--preset--color--pale-pink) !important}.has-vivid-red-background-color{background-color:var(--wp--preset--color--vivid-red) !important}.has-luminous-vivid-orange-background-color{background-color:var(--wp--preset--color--luminous-vivid-orange) !important}.has-luminous-vivid-amber-background-color{background-color:var(--wp--preset--color--luminous-vivid-amber) !important}.has-light-green-cyan-background-color{background-color:var(--wp--preset--color--light-green-cyan) !important}.has-vivid-green-cyan-background-color{background-color:var(--wp--preset--color--vivid-green-cyan) !important}.has-pale-cyan-blue-background-color{background-color:var(--wp--preset--color--pale-cyan-blue) !important}.has-vivid-cyan-blue-background-color{background-color:var(--wp--preset--color--vivid-cyan-blue) !important}.has-vivid-purple-background-color{background-color:var(--wp--preset--color--vivid-purple) !important}.has-black-border-color{border-color:var(--wp--preset--color--black) !important}.has-cyan-bluish-gray-border-color{border-color:var(--wp--preset--color--cyan-bluish-gray) !important}.has-white-border-color{border-color:var(--wp--preset--color--white) !important}.has-pale-pink-border-color{border-color:var(--wp--preset--color--pale-pink) !important}.has-vivid-red-border-color{border-color:var(--wp--preset--color--vivid-red) !important}.has-luminous-vivid-orange-border-color{border-color:var(--wp--preset--color--luminous-vivid-orange) !important}.has-luminous-vivid-amber-border-color{border-color:var(--wp--preset--color--luminous-vivid-amber) !important}.has-light-green-cyan-border-color{border-color:var(--wp--preset--color--light-green-cyan) !important}.has-vivid-green-cyan-border-color{border-color:var(--wp--preset--color--vivid-green-cyan) !important}.has-pale-cyan-blue-border-color{border-color:var(--wp--preset--color--pale-cyan-blue) !important}.has-vivid-cyan-blue-border-color{border-color:var(--wp--preset--color--vivid-cyan-blue) !important}.has-vivid-purple-border-color{border-color:var(--wp--preset--color--vivid-purple) !important}.has-vivid-cyan-blue-to-vivid-purple-gradient-background{background:var(--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple) !important}.has-light-green-cyan-to-vivid-green-cyan-gradient-background{background:var(--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan) !important}.has-luminous-vivid-amber-to-luminous-vivid-orange-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange) !important}.has-luminous-vivid-orange-to-vivid-red-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-orange-to-vivid-red) !important}.has-very-light-gray-to-cyan-bluish-gray-gradient-background{background:var(--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray) !important}.has-cool-to-warm-spectrum-gradient-background{background:var(--wp--preset--gradient--cool-to-warm-spectrum) !important}.has-blush-light-purple-gradient-background{background:var(--wp--preset--gradient--blush-light-purple) !important}.has-blush-bordeaux-gradient-background{background:var(--wp--preset--gradient--blush-bordeaux) !important}.has-luminous-dusk-gradient-background{background:var(--wp--preset--gradient--luminous-dusk) !important}.has-pale-ocean-gradient-background{background:var(--wp--preset--gradient--pale-ocean) !important}.has-electric-grass-gradient-background{background:var(--wp--preset--gradient--electric-grass) !important}.has-midnight-gradient-background{background:var(--wp--preset--gradient--midnight) !important}.has-small-font-size{font-size:var(--wp--preset--font-size--small) !important}.has-medium-font-size{font-size:var(--wp--preset--font-size--medium) !important}.has-large-font-size{font-size:var(--wp--preset--font-size--large) !important}.has-x-large-font-size{font-size:var(--wp--preset--font-size--x-large) !important}:root :where(.wp-block-pullquote){font-size:1.5em;line-height:1.6}.woocommerce #respond input#submit.alt,.woocommerce a.button.alt,.woocommerce button.button.alt,.woocommerce input.button.alt,.woocommerce #respond input#submit.alt:hover,.woocommerce a.button.alt:hover,.woocommerce button.button.alt:hover,.woocommerce input.button.alt:hover,.woocommerce a.button,.woocommerce a.button:hover,.woocommerce button.button,.woocommerce button.button:hover,.woocommerce a.remove:hover,.woocommerce a.button.wc-backward,.woocommerce a.button.wc-backward:hover{}.woocommerce #respond input#submit.alt,.woocommerce a.button.alt,.woocommerce button.button.alt,.woocommerce input.button.alt,.woocommerce #respond input#submit.alt:hover,.woocommerce a.button.alt:hover,.woocommerce button.button.alt:hover,.woocommerce input.button.alt:hover,.woocommerce a.button,.woocommerce a.button:hover,.woocommerce button.button,.woocommerce button.button:hover,.woocommerce a.button.wc-backward,.woocommerce button.button:disabled,.woocommerce button.button:disabled[disabled],.woocommerce .cart-collaterals .cart_totals .wc-proceed-to-checkout a.wc-forward{}.woocommerce a.remove{}.woocommerce .woocommerce-cart-form a.button,.woocommerce .woocommerce-cart-form button.button[type="submit"],.woocommerce .cart-collaterals a.checkout-button,.woocommerce .return-to-shop a.button.wc-backward{border:1px}.woocommerce-info,.woocommerce-message,.woocommerce-error{}.woocommerce-info::before,.woocommerce-message::before,.woocommerce-error::before{}h1,h2,h3,h4,h5,h6{}body,a{}@import url("https://cdn-ilelaij.nitrocdn.com/kZkRovtpoEUrmRooUTXpZWmlSDTRiOrY/assets/desktop/source/fonts.googleapis.com/3f255104075bdaf1c7c90e5389c7a97f.css");.pum-theme-1441,.pum-theme-lightbox{background-color:rgba(0,0,0,.6)}.pum-theme-1441 .pum-container,.pum-theme-lightbox .pum-container{padding:18px;border-radius:3px;border:8px solid #000;box-shadow:0px 0px 30px 0px rgba(2,2,2,1);background-color:rgba(255,255,255,1)}.pum-theme-1441 .pum-title,.pum-theme-lightbox .pum-title{color:#000;text-align:left;text-shadow:0px 0px 0px rgba(2,2,2,.23);font-family:inherit;font-weight:100;font-size:32px;line-height:36px}.pum-theme-1441 .pum-content,.pum-theme-lightbox .pum-content{color:#000;font-family:inherit;font-weight:100}.pum-theme-1441 .pum-content+.pum-close,.pum-theme-lightbox .pum-content+.pum-close{position:absolute;height:26px;width:26px;left:auto;right:-13px;bottom:auto;top:-13px;padding:0px;color:#fff;font-family:Arial;font-weight:100;font-size:24px;line-height:24px;border:2px solid #fff;border-radius:26px;box-shadow:0px 0px 15px 1px rgba(2,2,2,.75);text-shadow:0px 0px 0px rgba(0,0,0,.23);background-color:rgba(0,0,0,1)}.pum-theme-1442,.pum-theme-enterprise-blue{background-color:rgba(0,0,0,.7)}.pum-theme-1442 .pum-container,.pum-theme-enterprise-blue .pum-container{padding:28px;border-radius:5px;border:1px none #000;box-shadow:0px 10px 25px 4px rgba(2,2,2,.5);background-color:rgba(255,255,255,1)}.pum-theme-1442 .pum-title,.pum-theme-enterprise-blue .pum-title{color:#315b7c;text-align:left;text-shadow:0px 0px 0px rgba(2,2,2,.23);font-family:inherit;font-weight:100;font-size:34px;line-height:36px}.pum-theme-1442 .pum-content,.pum-theme-enterprise-blue .pum-content{color:#2d2d2d;font-family:inherit;font-weight:100}.pum-theme-1442 .pum-content+.pum-close,.pum-theme-enterprise-blue .pum-content+.pum-close{position:absolute;height:28px;width:28px;left:auto;right:8px;bottom:auto;top:8px;padding:4px;color:#fff;font-family:Times New Roman;font-weight:100;font-size:20px;line-height:20px;border:1px none #fff;border-radius:42px;box-shadow:0px 0px 0px 0px rgba(2,2,2,.23);text-shadow:0px 0px 0px rgba(0,0,0,.23);background-color:rgba(49,91,124,1)}.pum-theme-1443,.pum-theme-hello-box{background-color:rgba(0,0,0,.75)}.pum-theme-1443 .pum-container,.pum-theme-hello-box .pum-container{padding:30px;border-radius:80px;border:14px solid #81d742;box-shadow:0px 0px 0px 0px rgba(2,2,2,0);background-color:rgba(255,255,255,1)}.pum-theme-1443 .pum-title,.pum-theme-hello-box .pum-title{color:#2d2d2d;text-align:left;text-shadow:0px 0px 0px rgba(2,2,2,.23);font-family:Montserrat;font-weight:100;font-size:32px;line-height:36px}.pum-theme-1443 .pum-content,.pum-theme-hello-box .pum-content{color:#2d2d2d;font-family:inherit;font-weight:100}.pum-theme-1443 .pum-content+.pum-close,.pum-theme-hello-box .pum-content+.pum-close{position:absolute;height:auto;width:auto;left:auto;right:-30px;bottom:auto;top:-30px;padding:0px;color:#2d2d2d;font-family:Times New Roman;font-weight:100;font-size:32px;line-height:28px;border:1px none #fff;border-radius:28px;box-shadow:0px 0px 0px 0px rgba(2,2,2,.23);text-shadow:0px 0px 0px rgba(0,0,0,.23);background-color:rgba(255,255,255,1)}.pum-theme-1444,.pum-theme-cutting-edge{background-color:rgba(0,0,0,.5)}.pum-theme-1444 .pum-container,.pum-theme-cutting-edge .pum-container{padding:18px;border-radius:0px;border:1px none #000;box-shadow:0px 10px 25px 0px rgba(2,2,2,.5);background-color:rgba(30,115,190,1)}.pum-theme-1444 .pum-title,.pum-theme-cutting-edge .pum-title{color:#fff;text-align:left;text-shadow:0px 0px 0px rgba(2,2,2,.23);font-family:Sans-Serif;font-weight:100;font-size:26px;line-height:28px}.pum-theme-1444 .pum-content,.pum-theme-cutting-edge .pum-content{color:#fff;font-family:inherit;font-weight:100}.pum-theme-1444 .pum-content+.pum-close,.pum-theme-cutting-edge .pum-content+.pum-close{position:absolute;height:24px;width:24px;left:auto;right:0px;bottom:auto;top:0px;padding:0px;color:#1e73be;font-family:Times New Roman;font-weight:100;font-size:32px;line-height:24px;border:1px none #fff;border-radius:0px;box-shadow:-1px 1px 1px 0px rgba(2,2,2,.1);text-shadow:-1px 1px 1px rgba(0,0,0,.1);background-color:rgba(238,238,34,1)}.pum-theme-1445,.pum-theme-framed-border{background-color:rgba(255,255,255,.5)}.pum-theme-1445 .pum-container,.pum-theme-framed-border .pum-container{padding:18px;border-radius:0px;border:20px outset #d33;box-shadow:1px 1px 3px 0px rgba(2,2,2,.97) inset;background-color:rgba(255,251,239,1)}.pum-theme-1445 .pum-title,.pum-theme-framed-border .pum-title{color:#000;text-align:left;text-shadow:0px 0px 0px rgba(2,2,2,.23);font-family:inherit;font-weight:100;font-size:32px;line-height:36px}.pum-theme-1445 .pum-content,.pum-theme-framed-border .pum-content{color:#2d2d2d;font-family:inherit;font-weight:100}.pum-theme-1445 .pum-content+.pum-close,.pum-theme-framed-border .pum-content+.pum-close{position:absolute;height:20px;width:20px;left:auto;right:-20px;bottom:auto;top:-20px;padding:0px;color:#fff;font-family:Tahoma;font-weight:700;font-size:16px;line-height:18px;border:1px none #fff;border-radius:0px;box-shadow:0px 0px 0px 0px rgba(2,2,2,.23);text-shadow:0px 0px 0px rgba(0,0,0,.23);background-color:rgba(0,0,0,.55)}.pum-theme-1446,.pum-theme-floating-bar{background-color:rgba(255,255,255,0)}.pum-theme-1446 .pum-container,.pum-theme-floating-bar .pum-container{padding:8px;border-radius:0px;border:1px none #000;box-shadow:1px 1px 3px 0px rgba(2,2,2,.23);background-color:rgba(238,246,252,1)}.pum-theme-1446 .pum-title,.pum-theme-floating-bar .pum-title{color:#505050;text-align:left;text-shadow:0px 0px 0px rgba(2,2,2,.23);font-family:inherit;font-weight:400;font-size:32px;line-height:36px}.pum-theme-1446 .pum-content,.pum-theme-floating-bar .pum-content{color:#505050;font-family:inherit;font-weight:400}.pum-theme-1446 .pum-content+.pum-close,.pum-theme-floating-bar .pum-content+.pum-close{position:absolute;height:18px;width:18px;left:auto;right:5px;bottom:auto;top:50%;padding:0px;color:#505050;font-family:Sans-Serif;font-weight:700;font-size:15px;line-height:18px;border:1px solid #505050;border-radius:15px;box-shadow:0px 0px 0px 0px rgba(2,2,2,0);text-shadow:0px 0px 0px rgba(0,0,0,0);background-color:rgba(255,255,255,0);transform:translate(0,-50%)}.pum-theme-1447,.pum-theme-content-only{background-color:rgba(0,0,0,.7)}.pum-theme-1447 .pum-container,.pum-theme-content-only .pum-container{padding:0px;border-radius:0px;border:1px none #000;box-shadow:0px 0px 0px 0px rgba(2,2,2,0)}.pum-theme-1447 .pum-title,.pum-theme-content-only .pum-title{color:#000;text-align:left;text-shadow:0px 0px 0px rgba(2,2,2,.23);font-family:inherit;font-weight:400;font-size:32px;line-height:36px}.pum-theme-1447 .pum-content,.pum-theme-content-only .pum-content{color:#8c8c8c;font-family:inherit;font-weight:400}.pum-theme-1447 .pum-content+.pum-close,.pum-theme-content-only .pum-content+.pum-close{position:absolute;height:18px;width:18px;left:auto;right:7px;bottom:auto;top:7px;padding:0px;color:#000;font-family:inherit;font-weight:700;font-size:20px;line-height:20px;border:1px none #fff;border-radius:15px;box-shadow:0px 0px 0px 0px rgba(2,2,2,0);text-shadow:0px 0px 0px rgba(0,0,0,0);background-color:rgba(255,255,255,0)}.pum-theme-1440,.pum-theme-default-theme{background-color:rgba(255,255,255,1)}.pum-theme-1440 .pum-container,.pum-theme-default-theme .pum-container{padding:18px;border-radius:0px;border:1px none #000;box-shadow:1px 1px 3px 0px rgba(2,2,2,.23);background-color:rgba(249,249,249,1)}.pum-theme-1440 .pum-title,.pum-theme-default-theme .pum-title{color:#000;text-align:left;text-shadow:0px 0px 0px rgba(2,2,2,.23);font-family:inherit;font-weight:400;font-size:32px;font-style:normal;line-height:36px}.pum-theme-1440 .pum-content,.pum-theme-default-theme .pum-content{color:#8c8c8c;font-family:inherit;font-weight:400;font-style:inherit}.pum-theme-1440 .pum-content+.pum-close,.pum-theme-default-theme .pum-content+.pum-close{position:absolute;height:auto;width:auto;left:auto;right:0px;bottom:auto;top:0px;padding:8px;color:#fff;font-family:inherit;font-weight:400;font-size:12px;font-style:inherit;line-height:36px;border:1px none #fff;border-radius:0px;box-shadow:1px 1px 3px 0px rgba(2,2,2,.23);text-shadow:0px 0px 0px rgba(0,0,0,.23);background-color:rgba(0,183,205,1)}#pum-2092{z-index:1999999999}#pum-2022{z-index:1999999999}#pum-1469{z-index:1999999999}#pum-2018{z-index:1999999999}#pum-2014{z-index:1999999999}#pum-2008{z-index:1999999999}#pum-2004{z-index:1999999999}#pum-1996{z-index:1999999999}#pum-1990{z-index:1999999999}#pum-1984{z-index:1999999999}#pum-1974{z-index:1999999999}#pum-1966{z-index:1999999999}#pum-1947{z-index:1999999999}#pum-1953{z-index:1999999999}#pum-1936{z-index:1999999999}#pum-1932{z-index:1999999999}#pum-1923{z-index:1999999999}#pum-1917{z-index:1999999999}#pum-1910{z-index:1999999999}#pum-1903{z-index:1999999999}#pum-1899{z-index:1999999999}#pum-1892{z-index:1999999999}#pum-1884{z-index:1999999999}#pum-1878{z-index:1999999999}#pum-1478{z-index:1999999999}#pum-1506{z-index:1999999999}#pum-1501{z-index:1999999999}#pum-1496{z-index:1999999999}#pum-1484{z-index:1999999999}#pum-1448{z-index:1999999999}.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload),.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload) *{background-image:none !important}@media screen and (max-height: 1024px){.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload),.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload) *{background-image:none !important}.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload).nitro-lazy,.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload) *.nitro-lazy{background-image:none !important}}@media screen and (max-height: 640px){.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload),.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload) *{background-image:none !important}.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload).nitro-lazy,.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload) *.nitro-lazy{background-image:none !important}}.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload).nitro-lazy,.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload) *.nitro-lazy{background-image:none !important}.product-cover .elementor-widget-image img{height:300px !important;object-fit:cover;object-position:center center}.product-cover .elementskit-box-body.ekit-image-box-body{height:150px}.elementor-12 .elementor-element.elementor-element-6928f309>.elementor-widget-container{background-color:#cb0808 !important}.elementor-kit-8 button{color:#fff}.EMJMkNmzuk1NVTOYcM24jWZmTM1NMlDtheme--light{background:#fff;color:#454545;display:none !important}

ABOUT US

Shree Haree Auto Industries

Why Us?

Quality assured product range

Adept team of professionals

Ethical business policies

Client-centric approach

Large distribution network

Excellent transport & logistic facility

Our Products

Our Specializations

Brake Drum Sleeves

Cylinder Liners

Air-Cooled Blocks

Cylinder Sleeves

Our Other Products

Aftermarket Solutions for Leading Automotive Brands

Request a Quote or Sample

Our Specializations

Cylinder Sleeves

Cylinder Liner

Liner Piston

Brake Drum Sleeve

Precision Engineering Components

Gas Cylinder And Dry Ice Block

Get in Touch With Our Team

Address

Quuick Links

Talk to us

Follow us
